QJB Submersible Mixer
Power:0.85~10kW
Speed:480~980r/min
Diameter:260~620mm
Thrust:163~3300N
Current:3.2~50A
Medium Temperature:40
If you want to get more product information please contact us!

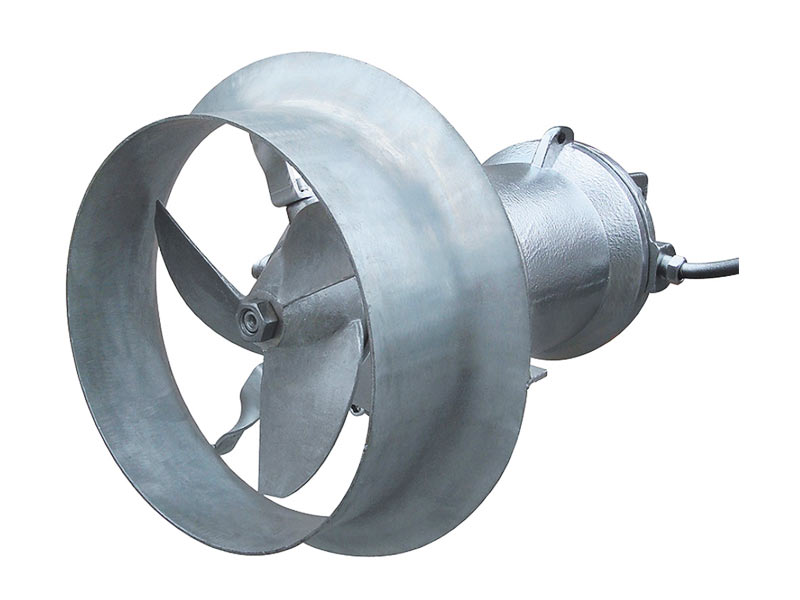

Product Introduction of QJB Submersible Mixer

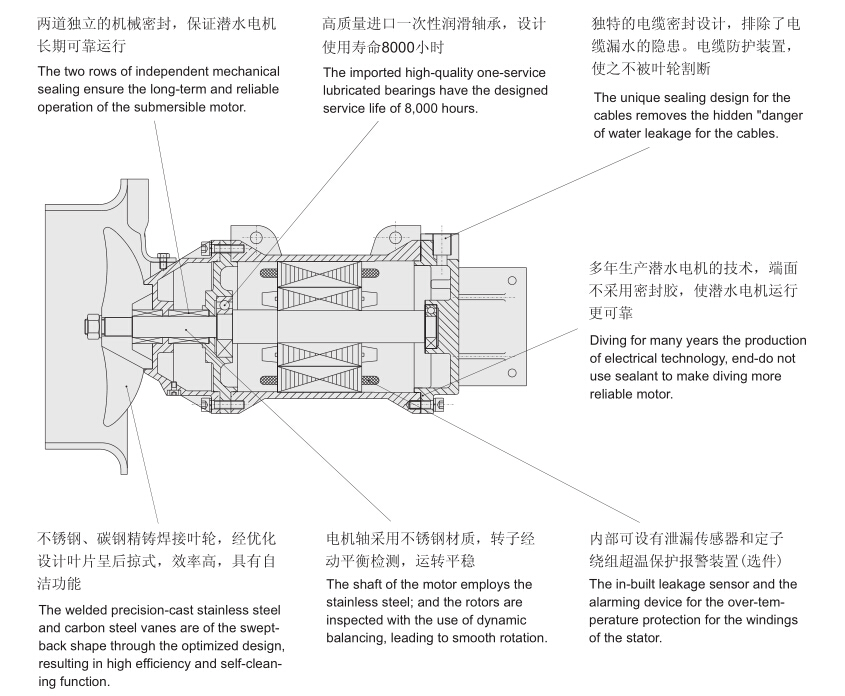

Model QJB Submersible Mixer, key equipment used in the water treatment technology, can meet the technological requirement on the homogeneity of the two-phase solid-liquid flow and three-phase solid-liquid-gas flow and the fluidity in the bio-chemical process in the flow path of the water treatment technology. It is composed of the submersible motor, vanes, installation system and so on. The submersible mixer belongs to the structure of the direct connection type. In comparison with the traditional high-power electric motor for speed reduction through the speed reducer, it is characterized by compact structure, low energy consumption, convenience in maintenance and repair and some other advantages. The vanes are made with the process of precision casting or punching, leading to high precision, large thrust as well as simple, nice-looking and streamlined profiling. The series of the products are suitable for usage in such locations as requiring solid-liquid agitating or mixing.
Model QJB Submersible Mixer, key equipment used in the water treatment technology, can meet the technological requirement on the homogeneity of the two-phase solid-liquid flow and three-phase solid-liquid-gas flow and the fluidity in the bio-chemical process in the flow path of the water treatment technology. It is composed of the submersible motor, vanes, installation system and so on. The submersible mixer belongs to the structure of the direct connection type. In comparison with the traditional high-power electric motor for speed reduction through the speed reducer, it is characterized by compact structure, low energy consumption, convenience in maintenance and repair and some other advantages. The vanes are made with the process of precision casting or punching, leading to high precision, large thrust as well as simple, nice-looking and streamlined profiling. The series of the products are suitable for usage in such locations as requiring solid-liquid agitating or mixing.
1. Application Scope
Suitable for the places need solid-liquid stirring and mixing
Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, and effectively prevent the deposition of suspended solids
2. Using Instruction
1. Medium tem <=40 degree
2. Diving depth <=10m
3. Medium PH 5~9
4. Medium density <=1150kg/m3
5. Completely submerged in water, and can’t work in the environment of flammable and explosive, highly corrosive and high temperature.
Suitable for the places need solid-liquid stirring and mixing
Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, and effectively prevent the deposition of suspended solids
2. Using Instruction
1. Medium tem <=40 degree
2. Diving depth <=10m
3. Medium PH 5~9
4. Medium density <=1150kg/m3
5. Completely submerged in water, and can’t work in the environment of flammable and explosive, highly corrosive and high temperature.

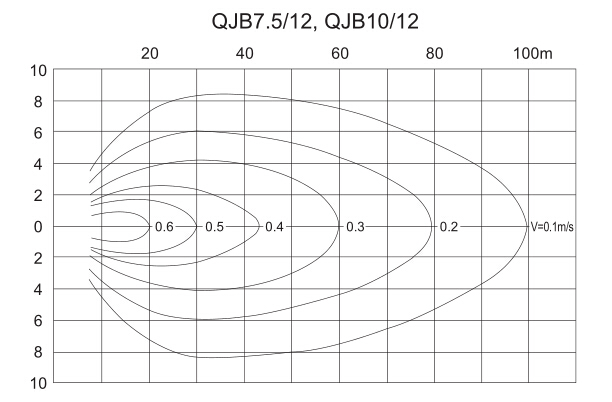

1. Performance curve
2. Specifications
2. Specifications
| Model | Power (kw) | Rated current (A) | Rpm of propeller (r/min) | Diameter of propeller (mm) | Thrust (N) | Weight(kg) |
| QJB0.85/8-260/3-740/S | 0.85 | 3.2 | 740 | 260 | 163 | 55/65 |
| QJB1.5/6-260/3-980/S | 1.5 | 4 | 980 | 260 | 290 | 55/65 |
| QJB2.2/8-320/3-740/S | 2.2 | 5.9 | 740 | 320 | 582 | 88/93 |
| QJB4/6-320/3-960/S | 4 | 10.3 | 960 | 320 | 609 | 88/93 |
| QJB1.5/8-400/3-740/S | 1.5 | 5.2 | 740 | 400 | 600 | 74/82 |
| QJB2.5/8-400/3-740/S | 2.5 | 7 | 740 | 400 | 800 | 74/82 |
| QJB3/8-400/3-740/S | 3 | 8.6 | 740 | 400 | 920 | 74/82 |
| QJB4/6-400/3-980/S | 4 | 10.3 | 980 | 400 | 1200 | 74/82 |
| QJB4/12-620/3-480/S | 4 | 14 | 480 | 620 | 1400 | 190/206 |
| QJB5/12-620/3-480/S | 5 | 18.2 | 480 | 620 | 1800 | 196/212 |
| QJB7.5/12-620/3-480/S | 7.5 | 28 | 480 | 620 | 2600 | 240/256 |
| QJB10/12-620/3-480/S | 10 | 32 | 480 | 620 | 3300 | 250/266 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | ||||||
