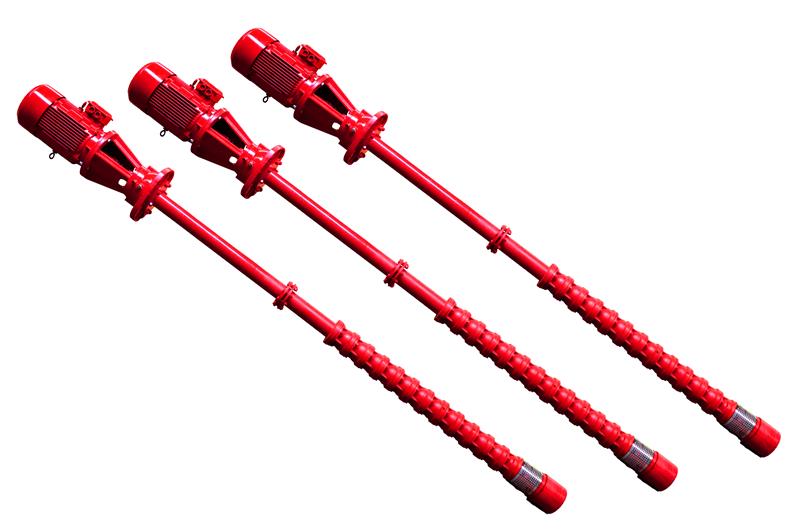

Vertical Turbine Fire Pump
Flow:30-5000 GPM
Head:3-20.5BAR
Speed:980~ 3550 r/min
If you want to get more product information please contact us!
vertical turbine pumpis used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea. Type JCW are used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.
BEARING AND LUBRICATION
The driving shaft in deep well pumps are supported by rubber bearings, and is lubricated and diving shaft must adopt protection pip and is lubricated and cooled by out water.
Axial force is carried by vertical hollow shaft motor or drive with roller bearing or sliding bearing which is lubricated by grease.
Structure
The pump consists of these assemblies, that is the crooking assembly and the column pipe assembly below ground and the drive device above ground.
Column pipe connection has two methods: flange connection and thread connection. Drive has three forms, i,e. Vertical hollow shaft motor drive, belt drive and gear box drive,later two kinds of drive are used for horizontal motor drive or diesel drive.
The vertical turbine fire pump is designed counter clockwise rotation when viewed from the motor end. To prevent counter-rotation, the non-reversing rachet is arranged on the top of motor or drive device.
Parameters
BEARING AND LUBRICATION
The driving shaft in deep well pumps are supported by rubber bearings, and is lubricated and diving shaft must adopt protection pip and is lubricated and cooled by out water.
Axial force is carried by vertical hollow shaft motor or drive with roller bearing or sliding bearing which is lubricated by grease.
Structure
The pump consists of these assemblies, that is the crooking assembly and the column pipe assembly below ground and the drive device above ground.
Column pipe connection has two methods: flange connection and thread connection. Drive has three forms, i,e. Vertical hollow shaft motor drive, belt drive and gear box drive,later two kinds of drive are used for horizontal motor drive or diesel drive.
The vertical turbine fire pump is designed counter clockwise rotation when viewed from the motor end. To prevent counter-rotation, the non-reversing rachet is arranged on the top of motor or drive device.
Parameters
| Model | Flow | Head | Motor Power (KW) | Diesel power12h | Diesel | |||||
| L/s | m³/h | GPM | Mpa | m | bar | Psi | kw | Model | ||
| XBD5.6/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.56 | 56 | 5.6 | 81 | 0.55 | 3.2 | F178FA |
| XBD7.7/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.77 | 77 | 7.7 | 112 | 0.75 | 3.2 | F178FA |
| XBD9.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.99 | 99 | 9.9 | 144 | 1.1 | 3.2 | F178FA |
| XBD11.8/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.18 | 118 | 11.8 | 171 | 1.5 | 3.2 | F178FA |
| XBD13.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.39 | 139 | 13.9 | 202 | 1.5 | 3.2 | F178FA |
| XBD16.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.69 | 169 | 16.9 | 245 | 2.2 | 3.2 | F178FA |
| XBD6.9/0.8WJ-XZQ | 0.8 | 3 | 13 | 0.69 | 69 | 6.9 | 100 | 1.1 | 3.2 | F178FA |
| XBD8.3/0.8WJ-XZQ | 0.8 | 3 | 13 | 0.83 | 83 | 8.3 | 120 | 1.1 | 3.2 | F178FA |
| XBD10.1/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.01 | 101 | 10.1 | 147 | 1.5 | 3.2 | F178FA |
| XBD11.5/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.15 | 115 | 11.5 | 167 | 2.2 | 3.2 | F178FA |
| XBD13.2/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.32 | 132 | 13.2 | 192 | 2.2 | 3.2 | F178FA |
| XBD15.3/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.53 | 153 | 15.3 | 222 | 3 | 3.2 | F178FA |
| XBD18.0/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.80 | 180 | 18.0 | 261 | 3 | 3.2 | F178FA |
| XBD4.9/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.49 | 49 | 4.9 | 71 | 1.1 | 3.2 | F178FA |
| XBD6.7/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.67 | 67 | 6.7 | 97 | 1.5 | 3.2 | F178FA |
| XBD8.2/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.82 | 82 | 8.2 | 119 | 2.2 | 3.2 | F178FA |
| XBD10.1/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.01 | 101 | 10.1 | 147 | 2.2 | 3.2 | F178FA |
| XBD13.0/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.30 | 130 | 13.0 | 189 | 3 | 3.2 | F178FA |
| XBD15.0/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.50 | 150 | 15.0 | 218 | 4 | 5.1 | F186FA |
| XBD17.5/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.75 | 175 | 17.5 | 254 | 4 | 5.1 | F186FA |
| XBD4.8/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.48 | 48 | 4.8 | 70 | 2.2 | 3.2 | F178FA |
| XBD6.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.60 | 60 | 6.0 | 87 | 2.2 | 3.2 | F178FA |
| XBD7.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.70 | 70 | 7.0 | 102 | 3 | 3.2 | F178FA |
| XBD8.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.80 | 80 | 8.0 | 116 | 4 | 5.1 | F186FA |
| XBD9.6/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.96 | 96 | 9.6 | 139 | 4 | 5.1 | F186FA |
| XBD10.4/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.04 | 104 | 10.4 | 151 | 5.5 | 9.5 | F192FA |
| XBD11.7/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.17 | 117 | 11.7 | 170 | 5.5 | 9.5 | F192FA |
| XBD12.3/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.23 | 123 | 12.3 | 179 | 5.5 | 9.5 | F192FA |
| XBD14.3/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.43 | 143 | 14.3 | 208 | 5.5 | 9.5 | F192FA |
| XBD4.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.40 | 40 | 4.0 | 58 | 3 | 9.5 | F192FA |
| XBD5.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.50 | 50 | 5.0 | 73 | 4 | 9.5 | F192FA |
| XBD7.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.70 | 70 | 7.0 | 102 | 5.5 | 9.5 | F192FA |
| XBD8.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.80 | 80 | 8.0 | 116 | 5.5 | 9.5 | F192FA |
| XBD10.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 1.00 | 100 | 10.0 | 145 | 7.5 | 9.5 | F192FA |
| XBD4.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.42 | 42 | 4.2 | 61 | 3 | 9.5 | F192FA |
| XBD5.8/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.58 | 58 | 5.8 | 84 | 4 | 9.5 | F192FA |
| XBD8.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.82 | 82 | 8.2 | 119 | 5.5 | 9.5 | F192FA |
| XBD10.5/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.05 | 105 | 10.5 | 152 | 7.5 | 9.5 | F192FA |
| XBD13.8/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.38 | 138 | 13.8 | 200 | 11 | 14 | 2V86 |
| XBD16.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.62 | 162 | 16.2 | 235 | 11 | 14 | 2V86 |
| XBD7.3/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.50 | 50 | 5.0 | 73 | 4 | 9.5 | F192FA |
| XBD9.0/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.62 | 62 | 6.2 | 90 | 5.5 | 9.5 | F192FA |
| XBD10.9/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.75 | 75 | 7.5 | 109 | 5.5 | 9.5 | F192FA |
| XBD12.5/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.86 | 86 | 8.6 | 125 | 7.5 | 9.5 | F192FA |
| XBD14.5/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.00 | 100 | 10.0 | 145 | 7.5 | 9.5 | F192FA |
| XBD16.3/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.12 | 112 | 11.2 | 163 | 7.5 | 9.5 | F192FA |
| XBD18.9/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.30 | 130 | 13.0 | 189 | 11 | 14 | 2V86 |
| XBD21.8/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.50 | 150 | 15.0 | 218 | 11 | 14 | 2V86 |
| XBD26.1/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.80 | 180 | 18.0 | 261 | 15 | 20 | Q380 |
| XBD29.8/5.0GJ-XZQ | 5.0 | 18 | 79 | 2.05 | 205 | 20.5 | 298 | 15 | 20 | Q380 |
| XBD3.0/5GJ-XZQ | 5 | 18 | 79 | 0.30 | 30 | 3 | 44 | 3.0 | 3.8 | 173F |
| XBD3.5/5GJ-XZQ | 5 | 18 | 79 | 0.35 | 35 | 4 | 51 | 4.0 | 5.7 | 186FA |
| XBD3.9/5GJ-XZQ | 5 | 18 | 79 | 0.39 | 39 | 4 | 57 | 4.0 | 5.7 | 186FA |
| XBD4.6/5GJ-XZQ | 5 | 18 | 79 | 0.46 | 46 | 5 | 67 | 5.5 | 8.1 | 192F |
| XBD5.0/5GJ-XZQ | 5 | 18 | 79 | 0.50 | 50 | 5 | 73 | 5.5 | 8.1 | 192F |
| XBD5.5/5GJ-XZQ | 5 | 18 | 79 | 0.55 | 55 | 6 | 80 | 5.5 | 8.1 | 192F |
| XBD6.0/5GJ-XZQ | 5 | 18 | 79 | 0.60 | 60 | 6 | 87 | 7.5 | 8.1 | 192F |
| XBD6.5/5GJ-XZQ | 5 | 18 | 79 | 0.65 | 65 | 7 | 94 | 7.5 | 8.1 | 192F |
| XBD7.2/5GJ-XZQ | 5 | 18 | 79 | 0.72 | 72 | 7 | 104 | 7.5 | 8.1 | 192F |
| XBD7.8/5GJ-XZQ | 5 | 18 | 79 | 0.78 | 78 | 8 | 113 | 7.5 | 8.1 | 192F |
| XBD8.0/5GJ-XZQ | 5 | 18 | 79 | 0.80 | 80 | 8 | 116 | 7.5 | 8.1 | 192F |
| XBD8.5/5GJ-XZQ | 5 | 18 | 79 | 0.85 | 85 | 9 | 123 | 11 | 20 | Q380 |
| XBD9.0/5GJ-XZQ | 5 | 18 | 79 | 0.90 | 90 | 9 | 131 | 11 | 20 | Q380 |
| XBD9.3/5GJ-XZQ | 5 | 18 | 79 | 0.93 | 93 | 9 | 135 | 11 | 20 | Q380 |
| XBD9.8/5GJ-XZQ | 5 | 18 | 79 | 0.98 | 98 | 10 | 142 | 11 | 20 | Q380 |
| XBD10.0/5GJ-XZQ | 5 | 18 | 79 | 1.00 | 100 | 10 | 145 | 11 | 20 | Q380 |
| XBD10.5/5GJ-XZQ | 5 | 18 | 79 | 1.05 | 105 | 11 | 152 | 11 | 20 | Q380 |
| XBD11.0/5GJ-XZQ | 5 | 18 | 79 | 1.10 | 110 | 11 | 160 | 11 | 20 | Q380 |
| XBD12.0/5GJ-XZQ | 5 | 18 | 79 | 1.20 | 120 | 12 | 174 | 15 | 20 | Q380 |
| XBD12.5/5GJ-XZQ | 5 | 18 | 79 | 1.25 | 125 | 13 | 181 | 15 | 20 | Q380 |
| XBD13.0/5GJ-XZQ | 5 | 18 | 79 | 1.30 | 130 | 13 | 189 | 15 | 20 | Q380 |
| XBD13.7/5GJ-XZQ | 5 | 18 | 79 | 1.37 | 137 | 14 | 199 | 15 | 20 | Q380 |
| XBD14.5/5GJ-XZQ | 5 | 18 | 79 | 1.45 | 145 | 15 | 210 | 15 | 20 | Q380 |
| XBD15.0/5GJ-XZQ | 5 | 18 | 79 | 1.50 | 150 | 15 | 218 | 15 | 20 | Q380 |
| XBD15.5/5GJ-XZQ | 5 | 18 | 79 | 1.55 | 155 | 16 | 225 | 15 | 20 | Q380 |
| XBD16.0/5GJ-XZQ | 5 | 18 | 79 | 1.60 | 160 | 16 | 232 | 15 | 20 | Q380 |
| XBD17.0/5GJ-XZQ | 5 | 18 | 79 | 1.70 | 170 | 17 | 247 | 18.5 | 23 | Q385 |
| XBD17.5/5GJ-XZQ | 5 | 18 | 79 | 1.73 | 173 | 17 | 251 | 18.5 | 23 | Q385 |
| XBD18.6/5GJ-XZQ | 5 | 18 | 79 | 1.86 | 186 | 19 | 270 | 18.5 | 23 | Q385 |
| XBD3.0/10GJ-XZQ | 10 | 36 | 159 | 0.30 | 30 | 3 | 44 | 5.5 | 8.1 | 192F |
| XBD3.8/10GJ-XZQ | 10 | 36 | 159 | 0.38 | 38 | 4 | 55 | 7.5 | 8.1 | 192F |
| XBD5.2/10GJ-XZQ | 10 | 36 | 159 | 0.52 | 52 | 5 | 75 | 11 | 20 | Q380 |
| XBD6.0/10GJ-XZQ | 10 | 36 | 159 | 0.65 | 65 | 7 | 94 | 11 | 20 | Q380 |
| XBD6.5/10GJ-XZQ | 10 | 36 | 159 | 0.65 | 65 | 7 | 94 | 15 | 20 | Q380 |
| XBD7.0/10GJ-XZQ | 10 | 36 | 159 | 0.70 | 70 | 7 | 102 | 15 | 20 | Q380 |
| XBD7.8/10GJ-XZQ | 10 | 36 | 159 | 0.78 | 78 | 8 | 113 | 15 | 20 | Q380 |
| XBD8.0/10GJ-XZQ | 10 | 36 | 159 | 0.80 | 80 | 8 | 116 | 18.5 | 23 | Q385 |
| XBD8.5/10GJ-XZQ | 10 | 36 | 159 | 0.85 | 85 | 9 | 123 | 18.5 | 23 | Q385 |
| XBD9.1/10GJ-XZQ | 10 | 36 | 159 | 0.91 | 91 | 9 | 132 | 18.5 | 23 | Q385 |
| XBD10.0/10GJ-XZQ | 10 | 36 | 159 | 1.00 | 100 | 10 | 145 | 18.5 | 23 | Q385 |
| XBD10.4/10GJ-XZQ | 10 | 36 | 159 | 1.04 | 104 | 10 | 151 | 18.5 | 23 | Q385 |
| XBD11.0/10GJ-XZQ | 10 | 36 | 159 | 1.10 | 110 | 11 | 160 | 22 | 29 | Q480 |
| XBD11.7/10GJ-XZQ | 10 | 36 | 159 | 1.17 | 117 | 12 | 170 | 22 | 29 | Q480 |
| XBD12.0/10GJ-XZQ | 10 | 36 | 159 | 1.20 | 120 | 12 | 174 | 30 | 35 | Q485 |
| XBD12.5/10GJ-XZQ | 10 | 36 | 159 | 1.25 | 125 | 13 | 181 | 30 | 35 | Q485 |
| XBD13.0/10GJ-XZQ | 10 | 36 | 159 | 1.30 | 130 | 13 | 189 | 30 | 35 | Q485 |
| XBD13.5/10GJ-XZQ | 10 | 36 | 159 | 1.35 | 135 | 14 | 196 | 30 | 35 | Q485 |
| XBD14.0/10GJ-XZQ | 10 | 36 | 159 | 1.40 | 140 | 14 | 203 | 30 | 35 | Q485 |
| XBD14.3/10GJ-XZQ | 10 | 36 | 159 | 1.43 | 143 | 14 | 207 | 30 | 35 | Q485 |
| XBD15.0/10GJ-XZQ | 10 | 36 | 159 | 1.50 | 150 | 15 | 218 | 30 | 35 | Q485 |
| XBD16.0/10GJ-XZQ | 10 | 36 | 159 | 1.60 | 160 | 16 | 232 | 30 | 35 | Q485 |
| XBD16.9/10GJ-XZQ | 10 | 36 | 159 | 1.69 | 169 | 17 | 245 | 30 | 35 | Q485 |
| XBD18.2/10GJ-XZQ | 10 | 36 | 159 | 1.82 | 182 | 18 | 264 | 37 | 46 | Q490 |
| XBD3.2/15GJ-XZQ | 15 | 54 | 238 | 0.32 | 32 | 3 | 46 | 11 | 20 | Q380 |
| XBD3.6/15GJ-XZQ | 15 | 54 | 238 | 0.36 | 36 | 4 | 52 | 11 | 20 | Q380 |
| XBD4.0/15GJ-XZQ | 15 | 54 | 238 | 0.40 | 40 | 4 | 58 | 11 | 20 | Q380 |
| XBD4.5/15GJ-XZQ | 15 | 54 | 238 | 0.45 | 45 | 5 | 65 | 15 | 20 | Q380 |
| XBD5.0/15GJ-XZQ | 15 | 54 | 238 | 0.50 | 50 | 5 | 73 | 15 | 20 | Q380 |
| XBD5.5/15GJ-XZQ | 15 | 54 | 238 | 0.55 | 55 | 6 | 80 | 15 | 20 | Q380 |
| XBD6.0/15GJ-XZQ | 15 | 54 | 238 | 0.60 | 60 | 6 | 87 | 18.5 | 23 | Q385 |
| XBD6.4/15GJ-XZQ | 15 | 54 | 238 | 0.64 | 64 | 6 | 93 | 18.5 | 23 | Q385 |
| XBD7.2/15GJ-XZQ | 15 | 54 | 238 | 0.72 | 72 | 7 | 104 | 22 | 29 | Q480 |
| XBD8.0/15GJ-XZQ | 15 | 54 | 238 | 0.80 | 80 | 8 | 116 | 22 | 29 | Q480 |
| XBD8.4/15GJ-XZQ | 15 | 54 | 238 | 0.84 | 84 | 8 | 122 | 30 | 35 | Q485 |
| XBD9.0/15GJ-XZQ | 15 | 54 | 238 | 0.90 | 90 | 9 | 131 | 30 | 35 | Q485 |
| XBD9.6/15GJ-XZQ | 15 | 54 | 238 | 0.96 | 96 | 10 | 139 | 30 | 35 | Q485 |
| XBD10.0/15GJ-XZQ | 15 | 54 | 238 | 1.00 | 100 | 10 | 145 | 30 | 35 | Q485 |
| XBD10.5/15GJ-XZQ | 15 | 54 | 238 | 1.05 | 105 | 11 | 152 | 30 | 35 | Q485 |
| XBD11.0/15GJ-XZQ | 15 | 54 | 238 | 1.10 | 110 | 11 | 160 | 30 | 35 | Q485 |
| XBD11.2/15GJ-XZQ | 15 | 54 | 238 | 1.12 | 112 | 11 | 162 | 30 | 35 | Q485 |
| XBD12.0/15GJ-XZQ | 15 | 54 | 238 | 1.20 | 120 | 12 | 174 | 37 | 46 | Q490 |
| XBD12.5/15GJ-XZQ | 15 | 54 | 238 | 1.25 | 125 | 13 | 181 | 37 | 46 | Q490 |
| XBD13.0/15GJ-XZQ | 15 | 54 | 238 | 1.30 | 130 | 13 | 189 | 45 | 50 | Q495 |
| XBD13.5/15GJ-XZQ | 15 | 54 | 238 | 1.35 | 135 | 14 | 196 | 45 | 50 | Q495 |
| XBD14.4/15GJ-XZQ | 15 | 54 | 238 | 1.44 | 144 | 14 | 209 | 45 | 50 | Q495 |
| XBD15.0/15GJ-XZQ | 15 | 54 | 238 | 1.50 | 150 | 15 | 218 | 45 | 50 | Q495 |
| XBD16.0/15GJ-XZQ | 15 | 54 | 238 | 1.60 | 160 | 16 | 232 | 45 | 50 | Q495 |
| XBD2.8/20GJ-XZQ | 20 | 72 | 317 | 0.28 | 28 | 3 | 41 | 11 | 20 | Q380 |
| XBD3.5/20GJ-XZQ | 20 | 72 | 317 | 0.35 | 35 | 4 | 51 | 15 | 20 | Q380 |
| XBD4.2/20GJ-XZQ | 20 | 72 | 317 | 0.42 | 42 | 4 | 61 | 15 | 20 | Q380 |
| XBD5.0/20GJ-XZQ | 20 | 72 | 317 | 0.50 | 50 | 5 | 73 | 18.5 | 23 | Q385 |
| XBD5.6/20GJ-XZQ | 20 | 72 | 317 | 0.56 | 56 | 6 | 81 | 22 | 29 | Q480 |
| XBD5.8/20GJ-XZQ | 20 | 72 | 317 | 0.58 | 58 | 6 | 84 | 22 | 29 | Q480 |
| XBD6.2/20GJ-XZQ | 20 | 72 | 317 | 0.62 | 62 | 6 | 90 | 22 | 29 | Q480 |
| XBD7.0/20GJ-XZQ | 20 | 72 | 317 | 0.70 | 70 | 7 | 102 | 30 | 35 | Q485 |
| XBD7.5/20GJ-XZQ | 20 | 72 | 317 | 0.75 | 75 | 8 | 109 | 30 | 35 | Q485 |
| XBD8.0/20GJ-XZQ | 20 | 72 | 317 | 0.80 | 80 | 8 | 116 | 30 | 35 | Q485 |
| XBD8.5/20GJ-XZQ | 20 | 72 | 317 | 0.85 | 85 | 9 | 123 | 30 | 35 | Q485 |
| XBD9.0/20GJ-XZQ | 20 | 72 | 317 | 0.90 | 90 | 9 | 131 | 37 | 46 | Q490 |
| XBD9.5/20GJ-XZQ | 20 | 72 | 317 | 0.95 | 95 | 10 | 138 | 37 | 46 | Q490 |
| XBD10.0/20GJ-XZQ | 20 | 72 | 317 | 1.00 | 100 | 10 | 145 | 37 | 46 | Q490 |
| XBD10.5/20GJ-XZQ | 20 | 72 | 317 | 1.05 | 105 | 11 | 152 | 45 | 50 | Q495 |
| XBD11.0/20GJ-XZQ | 20 | 72 | 317 | 1.10 | 110 | 11 | 160 | 45 | 50 | Q495 |
| XBD12.0/20GJ-XZQ | 20 | 72 | 317 | 1.20 | 120 | 12 | 174 | 45 | 50 | Q495 |
| XBD12.6/20GJ-XZQ | 20 | 72 | 317 | 1.26 | 126 | 13 | 183 | 45 | 50 | Q495 |
| XBD14.0/20GJ-XZQ | 20 | 72 | 317 | 1.40 | 140 | 14 | 203 | 55 | 63 | 4102QA |
| XBD15.0/20GJ-XZQ | 20 | 72 | 317 | 1.50 | 150 | 15 | 218 | 55 | 63 | 4102QA |
| XBD16.0/20GJ-XZQ | 20 | 72 | 317 | 1.60 | 160 | 16 | 232 | 75 | 90 | 4105ZQ |
| XBD3.0/25GJ-XZQ | 25 | 90 | 396 | 0.30 | 30 | 3 | 44 | 15 | 20 | Q380 |
| XBD3.6/25GJ-XZQ | 25 | 90 | 396 | 0.36 | 36 | 4 | 52 | 15 | 20 | Q380 |
| XBD4.5/25GJ-XZQ | 25 | 90 | 396 | 0.45 | 45 | 5 | 65 | 22 | 29 | Q480 |
| XBD5.0/25GJ-XZQ | 25 | 90 | 396 | 0.50 | 50 | 5 | 73 | 22 | 29 | Q480 |
| XBD5.4/25GJ-XZQ | 25 | 90 | 396 | 0.54 | 54 | 5 | 78 | 30 | 35 | Q485 |
| XBD6.0/25GJ-XZQ | 25 | 90 | 396 | 0.60 | 60 | 6 | 87 | 30 | 35 | Q485 |
| XBD6.5/25GJ-XZQ | 25 | 90 | 396 | 0.65 | 65 | 7 | 94 | 30 | 35 | Q485 |
| XBD7.0/25GJ-XZQ | 25 | 90 | 396 | 0.70 | 70 | 7 | 102 | 37 | 46 | Q490 |
| XBD7.5/25GJ-XZQ | 25 | 90 | 396 | 0.75 | 75 | 8 | 109 | 37 | 46 | Q490 |
| XBD8.0/25GJ-XZQ | 25 | 90 | 396 | 0.80 | 80 | 8 | 116 | 37 | 46 | Q490 |
| XBD8.5/25GJ-XZQ | 25 | 90 | 396 | 0.85 | 85 | 9 | 123 | 45 | 50 | Q495 |
| XBD9.0/25GJ-XZQ | 25 | 90 | 396 | 0.90 | 90 | 9 | 131 | 45 | 50 | Q495 |
| XBD9.5/25GJ-XZQ | 25 | 90 | 396 | 0.95 | 95 | 10 | 138 | 45 | 50 | Q495 |
| XBD10.0/25GJ-XZQ | 25 | 90 | 396 | 1.00 | 100 | 10 | 145 | 45 | 50 | Q495 |
| XBD10.5/25GJ-XZQ | 25 | 90 | 396 | 1.05 | 105 | 11 | 152 | 55 | 63 | 4102QA |
| XBD10.8/25GJ-XZQ | 25 | 90 | 396 | 1.08 | 108 | 11 | 157 | 55 | 63 | 4102QA |
| XBD12.0/25GJ-XZQ | 25 | 90 | 396 | 1.20 | 120 | 12 | 174 | 55 | 63 | 4102QA |
| XBD12.6/25GJ-XZQ | 25 | 90 | 396 | 1.26 | 126 | 13 | 183 | 55 | 63 | 4102QA |
| XBD14.0/25GJ-XZQ | 25 | 90 | 396 | 1.04 | 104 | 10 | 151 | 75 | 90 | 4105ZQ |
| XBD15.0/25GJ-XZQ | 25 | 90 | 396 | 1.50 | 150 | 15 | 218 | 75 | 90 | 4105ZQ |
| XBD16.0/25GJ-XZQ | 25 | 90 | 396 | 1.60 | 160 | 16 | 232 | 75 | 90 | 4105ZQ |
| XBD3.0/30GJ-XZQ | 30 | 108 | 476 | 0.30 | 30 | 3 | 44 | 18.5 | 23 | Q385 |
| XBD3.4/30GJ-XZQ | 30 | 108 | 476 | 0.34 | 34 | 3 | 49 | 18.5 | 23 | Q385 |
| XBD4.0/30GJ-XZQ | 30 | 108 | 476 | 0.40 | 40 | 4 | 58 | 22 | 29 | Q480 |
| XBD4.5/30GJ-XZQ | 30 | 108 | 476 | 0.45 | 45 | 5 | 65 | 30 | 35 | Q485 |
| XBD5.0/30GJ-XZQ | 30 | 108 | 476 | 0.50 | 50 | 5 | 73 | 30 | 35 | Q485 |
| XBD5.5/30GJ-XZQ | 30 | 108 | 476 | 0.55 | 55 | 6 | 80 | 30 | 35 | Q485 |
| XBD6.0/30GJ-XZQ | 30 | 108 | 476 | 0.60 | 60 | 6 | 87 | 30 | 35 | Q485 |
| XBD6.4/30GJ-XZQ | 30 | 108 | 476 | 0.64 | 64 | 6 | 93 | 37 | 46 | Q490 |
| XBD6.9/30GJ-XZQ | 30 | 108 | 476 | 0.69 | 69 | 7 | 100 | 37 | 46 | Q490 |
| XBD7.5/30GJ-XZQ | 30 | 108 | 476 | 0.75 | 75 | 8 | 109 | 37 | 46 | Q490 |
| XBD8.0/30GJ-XZQ | 30 | 108 | 476 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD8.5/30GJ-XZQ | 30 | 108 | 476 | 0.85 | 85 | 9 | 123 | 45 | 50 | Q495 |
| XBD9.0/30GJ-XZQ | 30 | 108 | 476 | 0.90 | 90 | 9 | 131 | 45 | 50 | Q495 |
| XBD9.5/30GJ-XZQ | 30 | 108 | 476 | 0.95 | 95 | 10 | 138 | 55 | 63 | 4102QA |
| XBD10.0/30GJ-XZQ | 30 | 108 | 476 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/30GJ-XZQ | 30 | 108 | 476 | 1.05 | 105 | 11 | 152 | 75 | 90 | 4105ZQ |
| XBD11.0/30GJ-XZQ | 30 | 108 | 476 | 1.10 | 110 | 11 | 160 | 75 | 90 | 4105ZQ |
| XBD12.0/30GJ-XZQ | 30 | 108 | 476 | 1.20 | 120 | 12 | 174 | 75 | 90 | 4105ZQ |
| XBD12.8/30GJ-XZQ | 30 | 108 | 476 | 1.28 | 128 | 13 | 186 | 75 | 90 | 4105ZQ |
| XBD14.0/30GJ-XZQ | 30 | 108 | 476 | 1.40 | 140 | 14 | 203 | 90 | 125 | 6BD-Z |
| XBD15.0/30GJ-XZQ | 30 | 108 | 476 | 1.50 | 150 | 15 | 218 | 90 | 125 | 6BD-Z |
| XBD16.0/30GJ-XZQ | 30 | 108 | 476 | 1.60 | 160 | 16 | 232 | 90 | 125 | 6BD-Z |
| XBD3.0/35GJ-XZQ | 35 | 126 | 555 | 0.30 | 30 | 3 | 44 | 18.5 | 23 | Q385 |
| XBD3.5/35GJ-XZQ | 35 | 126 | 555 | 0.35 | 35 | 4 | 51 | 22 | 29 | Q480 |
| XBD4.0/35GJ-XZQ | 35 | 126 | 555 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.5/35GJ-XZQ | 35 | 126 | 555 | 0.45 | 45 | 5 | 65 | 30 | 35 | Q485 |
| XBD4.8/35GJ-XZQ | 35 | 126 | 555 | 0.48 | 48 | 5 | 70 | 30 | 35 | Q485 |
| XBD5.2/35GJ-XZQ | 35 | 126 | 555 | 0.52 | 52 | 5 | 75 | 37 | 46 | Q490 |
| XBD5.6/35GJ-XZQ | 35 | 126 | 555 | 0.56 | 56 | 6 | 81 | 37 | 46 | Q490 |
| XBD6.0/35GJ-XZQ | 35 | 126 | 555 | 0.60 | 60 | 6 | 87 | 37 | 46 | Q490 |
| XBD6.4/35GJ-XZQ | 35 | 126 | 555 | 0.64 | 64 | 6 | 93 | 37 | 46 | Q490 |
| XBD7.5/35GJ-XZQ | 35 | 126 | 555 | 0.75 | 75 | 8 | 109 | 45 | 50 | Q495 |
| XBD8.0/35GJ-XZQ | 35 | 126 | 555 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD9.0/35GJ-XZQ | 35 | 126 | 555 | 0.90 | 90 | 9 | 131 | 55 | 63 | 4102QA |
| XBD9.5/35GJ-XZQ | 35 | 126 | 555 | 0.95 | 95 | 10 | 138 | 55 | 63 | 4102QA |
| XBD10.0/35GJ-XZQ | 35 | 126 | 555 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD11.0/35GJ-XZQ | 35 | 126 | 555 | 1.10 | 110 | 11 | 160 | 75 | 90 | 4105ZQ |
| XBD12.0/35GJ-XZQ | 35 | 126 | 555 | 1.20 | 120 | 12 | 174 | 75 | 90 | 4105ZQ |
| XBD12.8/35GJ-XZQ | 35 | 126 | 555 | 1.28 | 128 | 13 | 186 | 75 | 90 | 4105ZQ |
| XBD14.0/35GJ-XZQ | 35 | 126 | 555 | 1.40 | 140 | 14 | 203 | 90 | 125 | 6BD-Z |
| XBD15.0/35GJ-XZQ | 35 | 126 | 555 | 1.50 | 150 | 15 | 218 | 90 | 125 | 6BD-Z |
| XBD16.0/35GJ-XZQ | 35 | 126 | 555 | 1.60 | 160 | 16 | 232 | 90 | 125 | 6BD-Z |
| XBD3.0/40GJ-XZQ | 40 | 144 | 634 | 0.30 | 30 | 3 | 44 | 22 | 29 | Q480 |
| XBD3.5/40GJ-XZQ | 40 | 144 | 634 | 0.35 | 35 | 4 | 51 | 30 | 35 | Q485 |
| XBD4.0/40GJ-XZQ | 40 | 144 | 634 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.6/40GJ-XZQ | 40 | 144 | 634 | 0.46 | 46 | 5 | 67 | 30 | 35 | Q485 |
| XBD5.0/40GJ-XZQ | 40 | 144 | 634 | 0.50 | 50 | 5 | 73 | 37 | 46 | Q490 |
| XBD5.5/40GJ-XZQ | 40 | 144 | 634 | 0.55 | 55 | 6 | 80 | 37 | 46 | Q490 |
| XBD6.0/40GJ-XZQ | 40 | 144 | 634 | 0.60 | 60 | 6 | 87 | 37 | 46 | Q490 |
| XBD6.5/40GJ-XZQ | 40 | 144 | 634 | 0.65 | 65 | 7 | 94 | 45 | 50 | Q495 |
| XBD7.0/40GJ-XZQ | 40 | 144 | 634 | 0.70 | 70 | 7 | 102 | 45 | 50 | Q495 |
| XBD7.5/40GJ-XZQ | 40 | 144 | 634 | 0.75 | 75 | 8 | 109 | 45 | 50 | Q495 |
| XBD8.0/40GJ-XZQ | 40 | 144 | 634 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD8.5/40GJ-XZQ | 40 | 144 | 634 | 0.85 | 85 | 9 | 123 | 55 | 63 | 4102QA |
| XBD9.0/40GJ-XZQ | 40 | 144 | 634 | 0.90 | 90 | 9 | 131 | 55 | 63 | 4102QA |
| XBD9.5/40GJ-XZQ | 40 | 144 | 634 | 0.95 | 95 | 10 | 138 | 75 | 90 | 4105ZQ |
| XBD10.0/40G | 40 | 144 | 634 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/40G | 40 | 144 | 634 | 1.05 | 105 | 11 | 152 | 75 | 90 | 4105ZQ |
| XBD11.0/40G | 40 | 144 | 634 | 1.10 | 110 | 11 | 160 | 90 | 125 | 6BD-Z |
| XBD12.0/40G | 40 | 144 | 634 | 1.20 | 120 | 12 | 174 | 90 | 125 | 6BD-Z |
| XBD13.0/40G | 40 | 144 | 634 | 1.30 | 130 | 13 | 189 | 90 | 125 | 6BD-Z |
| XBD14.0/40G | 40 | 144 | 634 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/40G | 40 | 144 | 634 | 1.50 | 150 | 15 | 218 | 110 | 155 | 6BD-ZL |
| XBD16.0/40G | 40 | 144 | 634 | 1.60 | 160 | 16 | 232 | 110 | 155 | 6BD-ZL |
| XBD3.0/45GJ-XZQ | 45 | 162 | 714 | 0.30 | 30 | 3 | 44 | 22 | 29 | Q480 |
| XBD4.0/45GJ-XZQ | 45 | 162 | 714 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.5/45GJ-XZQ | 45 | 162 | 714 | 0.45 | 45 | 5 | 65 | 37 | 46 | Q490 |
| XBD5.0/45GJ-XZQ | 45 | 162 | 714 | 0.50 | 50 | 5 | 73 | 37 | 46 | Q490 |
| XBD5.5/45GJ-XZQ | 45 | 162 | 714 | 0.55 | 55 | 6 | 80 | 45 | 50 | Q495 |
| XBD6.0/45GJ-XZQ | 45 | 162 | 714 | 0.60 | 60 | 6 | 87 | 45 | 50 | Q495 |
| XBD6.5/45GJ-XZQ | 45 | 162 | 714 | 0.65 | 65 | 7 | 94 | 55 | 63 | 4102QA |
| XBD7.0/45GJ-XZQ | 45 | 162 | 714 | 0.70 | 70 | 7 | 102 | 55 | 63 | 4102QA |
| XBD7.5/45GJ-XZQ | 45 | 162 | 714 | 0.75 | 75 | 8 | 109 | 55 | 63 | 4102QA |
| XBD8.0/45GJ-XZQ | 45 | 162 | 714 | 0.80 | 80 | 8 | 116 | 75 | 90 | 4105ZQ |
| XBD8.5/45GJ-XZQ | 45 | 162 | 714 | 0.85 | 85 | 9 | 123 | 75 | 90 | 4105ZQ |
| XBD9.0/45GJ-XZQ | 45 | 162 | 714 | 0.90 | 90 | 9 | 131 | 75 | 90 | 4105ZQ |
| XBD9.5/45GJ-XZQ | 45 | 162 | 714 | 0.95 | 95 | 10 | 138 | 90 | 125 | 6BD-Z |
| XBD10.0/45GJ-XZQ | 45 | 162 | 714 | 1.00 | 100 | 10 | 145 | 90 | 125 | 6BD-Z |
| XBD11.0/45GJ-XZQ | 45 | 162 | 714 | 1.10 | 110 | 11 | 160 | 90 | 125 | 6BD-Z |
| XBD12.0/45GJ-XZQ | 45 | 162 | 714 | 1.20 | 120 | 12 | 174 | 110 | 155 | 6BD-ZL |
| XBD13.0/45GJ-XZQ | 45 | 162 | 714 | 1.30 | 130 | 13 | 189 | 110 | 155 | 6BD-ZL |
| XBD14.0/45GJ-XZQ | 45 | 162 | 714 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/45GJ-XZQ | 45 | 162 | 714 | 1.50 | 150 | 15 | 218 | 110 | 155 | 6BD-ZL |
| XBD16.0/45GJ-XZQ | 45 | 162 | 714 | 1.60 | 160 | 16 | 232 | 110 | 155 | 6BD-ZL |
| XBD3.0/50GJ-XZQ | 50 | 180 | 793 | 0.30 | 30 | 3 | 44 | 30 | 35 | Q485 |
| XBD3.5/50GJ-XZQ | 50 | 180 | 793 | 0.35 | 35 | 4 | 51 | 30 | 35 | Q485 |
| XBD4.0/50GJ-XZQ | 50 | 180 | 793 | 0.40 | 40 | 4 | 58 | 37 | 46 | Q490 |
| XBD4.5/50GJ-XZQ | 50 | 180 | 793 | 0.45 | 45 | 5 | 65 | 37 | 46 | Q490 |
| XBD5.0/50GJ-XZQ | 50 | 180 | 793 | 0.50 | 50 | 5 | 73 | 45 | 50 | Q495 |
| XBD5.5/50GJ-XZQ | 50 | 180 | 793 | 0.55 | 55 | 6 | 80 | 45 | 50 | Q495 |
| XBD6.0/50GJ-XZQ | 50 | 180 | 793 | 0.60 | 60 | 6 | 87 | 55 | 63 | 4102QA |
| XBD6.5/50GJ-XZQ | 50 | 180 | 793 | 0.65 | 65 | 7 | 94 | 55 | 63 | 4102QA |
| XBD7.0/50GJ-XZQ | 50 | 180 | 793 | 0.70 | 70 | 7 | 102 | 55 | 63 | 4102QA |
| XBD7.5/50GJ-XZQ | 50 | 180 | 793 | 0.75 | 75 | 8 | 109 | 75 | 90 | 4105ZQ |
| XBD8.0/50GJ-XZQ | 50 | 180 | 793 | 0.80 | 80 | 8 | 116 | 75 | 90 | 4105ZQ |
| XBD8.5/50GJ-XZQ | 50 | 180 | 793 | 0.85 | 85 | 9 | 123 | 75 | 90 | 4105ZQ |
| XBD9.0/50GJ-XZQ | 50 | 180 | 793 | 0.90 | 90 | 9 | 131 | 75 | 90 | 4105ZQ |
| XBD9.5/50GJ-XZQ | 50 | 180 | 793 | 0.95 | 95 | 10 | 138 | 75 | 90 | 4105ZQ |
| XBD10.0/50GJ-XZQ | 50 | 180 | 793 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/50GJ-XZQ | 50 | 180 | 793 | 1.05 | 105 | 11 | 152 | 90 | 125 | 6BD-Z |
| XBD11.0/50GJ-XZQ | 50 | 180 | 793 | 1.10 | 110 | 11 | 160 | 110 | 155 | 6BD-ZL |
| XBD12.0/50GJ-XZQ | 50 | 180 | 793 | 1.20 | 120 | 12 | 174 | 110 | 155 | 6BD-ZL |
| XBD13.0/50GJ-XZQ | 50 | 180 | 793 | 1.30 | 130 | 13 | 189 | 110 | 155 | 6BD-ZL |
| XBD14.0/50GJ-XZQ | 50 | 180 | 793 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/50GJ-XZQ | 50 | 180 | 793 | 1.50 | 150 | 15 | 218 | 132 | 175 | 6113IZLD |
| XBD16.0/50GJ-XZQ | 50 | 180 | 793 | 1.60 | 160 | 16 | 232 | 132 | 175 | 6113IZLD |
Impeller: alloy cast iron or silicon brass
Pump casing: alloy cast iron
Conical bush: stainless steel
Pump shaft: fine carbon steel or stainless steel
Bearing: rubber
Column pipe: seamless steel pipe
Product Range
Capacities: Q = 5~1800m3/h
Total heads: H = 20~234m
Speed: 980~ 3550 r/min
Pump casing: alloy cast iron
Conical bush: stainless steel
Pump shaft: fine carbon steel or stainless steel
Bearing: rubber
Column pipe: seamless steel pipe
Product Range
Capacities: Q = 5~1800m3/h
Total heads: H = 20~234m
Speed: 980~ 3550 r/min
| Model | Flow | Head | Motor Power (KW) | Diesel power12h | Diesel | |||||
| L/s | m³/h | GPM | Mpa | m | bar | Psi | kw | Model | ||
| XBD5.6/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.56 | 56 | 5.6 | 81 | 0.55 | 3.2 | F178FA |
| XBD7.7/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.77 | 77 | 7.7 | 112 | 0.75 | 3.2 | F178FA |
| XBD9.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 0.99 | 99 | 9.9 | 144 | 1.1 | 3.2 | F178FA |
| XBD11.8/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.18 | 118 | 11.8 | 171 | 1.5 | 3.2 | F178FA |
| XBD13.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.39 | 139 | 13.9 | 202 | 1.5 | 3.2 | F178FA |
| XBD16.9/0.6WJ-XZQ | 0.6 | 2 | 9 | 1.69 | 169 | 16.9 | 245 | 2.2 | 3.2 | F178FA |
| XBD6.9/0.8WJ-XZQ | 0.8 | 3 | 13 | 0.69 | 69 | 6.9 | 100 | 1.1 | 3.2 | F178FA |
| XBD8.3/0.8WJ-XZQ | 0.8 | 3 | 13 | 0.83 | 83 | 8.3 | 120 | 1.1 | 3.2 | F178FA |
| XBD10.1/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.01 | 101 | 10.1 | 147 | 1.5 | 3.2 | F178FA |
| XBD11.5/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.15 | 115 | 11.5 | 167 | 2.2 | 3.2 | F178FA |
| XBD13.2/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.32 | 132 | 13.2 | 192 | 2.2 | 3.2 | F178FA |
| XBD15.3/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.53 | 153 | 15.3 | 222 | 3 | 3.2 | F178FA |
| XBD18.0/0.8WJ-XZQ | 0.8 | 3 | 13 | 1.80 | 180 | 18.0 | 261 | 3 | 3.2 | F178FA |
| XBD4.9/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.49 | 49 | 4.9 | 71 | 1.1 | 3.2 | F178FA |
| XBD6.7/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.67 | 67 | 6.7 | 97 | 1.5 | 3.2 | F178FA |
| XBD8.2/1.4WJ-XZQ | 1.4 | 5 | 22 | 0.82 | 82 | 8.2 | 119 | 2.2 | 3.2 | F178FA |
| XBD10.1/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.01 | 101 | 10.1 | 147 | 2.2 | 3.2 | F178FA |
| XBD13.0/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.30 | 130 | 13.0 | 189 | 3 | 3.2 | F178FA |
| XBD15.0/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.50 | 150 | 15.0 | 218 | 4 | 5.1 | F186FA |
| XBD17.5/1.4WJ-XZQ | 1.4 | 5 | 22 | 1.75 | 175 | 17.5 | 254 | 4 | 5.1 | F186FA |
| XBD4.8/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.48 | 48 | 4.8 | 70 | 2.2 | 3.2 | F178FA |
| XBD6.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.60 | 60 | 6.0 | 87 | 2.2 | 3.2 | F178FA |
| XBD7.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.70 | 70 | 7.0 | 102 | 3 | 3.2 | F178FA |
| XBD8.0/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.80 | 80 | 8.0 | 116 | 4 | 5.1 | F186FA |
| XBD9.6/2.2WJ-XZQ | 2.2 | 8 | 35 | 0.96 | 96 | 9.6 | 139 | 4 | 5.1 | F186FA |
| XBD10.4/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.04 | 104 | 10.4 | 151 | 5.5 | 9.5 | F192FA |
| XBD11.7/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.17 | 117 | 11.7 | 170 | 5.5 | 9.5 | F192FA |
| XBD12.3/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.23 | 123 | 12.3 | 179 | 5.5 | 9.5 | F192FA |
| XBD14.3/2.2WJ-XZQ | 2.2 | 8 | 35 | 1.43 | 143 | 14.3 | 208 | 5.5 | 9.5 | F192FA |
| XBD4.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.40 | 40 | 4.0 | 58 | 3 | 9.5 | F192FA |
| XBD5.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.50 | 50 | 5.0 | 73 | 4 | 9.5 | F192FA |
| XBD7.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.70 | 70 | 7.0 | 102 | 5.5 | 9.5 | F192FA |
| XBD8.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 0.80 | 80 | 8.0 | 116 | 5.5 | 9.5 | F192FA |
| XBD10.0/3.3WJ-XZQ | 3.3 | 12 | 53 | 1.00 | 100 | 10.0 | 145 | 7.5 | 9.5 | F192FA |
| XBD4.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.42 | 42 | 4.2 | 61 | 3 | 9.5 | F192FA |
| XBD5.8/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.58 | 58 | 5.8 | 84 | 4 | 9.5 | F192FA |
| XBD8.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 0.82 | 82 | 8.2 | 119 | 5.5 | 9.5 | F192FA |
| XBD10.5/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.05 | 105 | 10.5 | 152 | 7.5 | 9.5 | F192FA |
| XBD13.8/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.38 | 138 | 13.8 | 200 | 11 | 14 | 2V86 |
| XBD16.2/4.2WJ-XZQ | 4.2 | 15 | 66 | 1.62 | 162 | 16.2 | 235 | 11 | 14 | 2V86 |
| XBD7.3/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.50 | 50 | 5.0 | 73 | 4 | 9.5 | F192FA |
| XBD9.0/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.62 | 62 | 6.2 | 90 | 5.5 | 9.5 | F192FA |
| XBD10.9/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.75 | 75 | 7.5 | 109 | 5.5 | 9.5 | F192FA |
| XBD12.5/5.0GJ-XZQ | 5.0 | 18 | 79 | 0.86 | 86 | 8.6 | 125 | 7.5 | 9.5 | F192FA |
| XBD14.5/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.00 | 100 | 10.0 | 145 | 7.5 | 9.5 | F192FA |
| XBD16.3/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.12 | 112 | 11.2 | 163 | 7.5 | 9.5 | F192FA |
| XBD18.9/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.30 | 130 | 13.0 | 189 | 11 | 14 | 2V86 |
| XBD21.8/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.50 | 150 | 15.0 | 218 | 11 | 14 | 2V86 |
| XBD26.1/5.0GJ-XZQ | 5.0 | 18 | 79 | 1.80 | 180 | 18.0 | 261 | 15 | 20 | Q380 |
| XBD29.8/5.0GJ-XZQ | 5.0 | 18 | 79 | 2.05 | 205 | 20.5 | 298 | 15 | 20 | Q380 |
| XBD3.0/5GJ-XZQ | 5 | 18 | 79 | 0.30 | 30 | 3 | 44 | 3.0 | 3.8 | 173F |
| XBD3.5/5GJ-XZQ | 5 | 18 | 79 | 0.35 | 35 | 4 | 51 | 4.0 | 5.7 | 186FA |
| XBD3.9/5GJ-XZQ | 5 | 18 | 79 | 0.39 | 39 | 4 | 57 | 4.0 | 5.7 | 186FA |
| XBD4.6/5GJ-XZQ | 5 | 18 | 79 | 0.46 | 46 | 5 | 67 | 5.5 | 8.1 | 192F |
| XBD5.0/5GJ-XZQ | 5 | 18 | 79 | 0.50 | 50 | 5 | 73 | 5.5 | 8.1 | 192F |
| XBD5.5/5GJ-XZQ | 5 | 18 | 79 | 0.55 | 55 | 6 | 80 | 5.5 | 8.1 | 192F |
| XBD6.0/5GJ-XZQ | 5 | 18 | 79 | 0.60 | 60 | 6 | 87 | 7.5 | 8.1 | 192F |
| XBD6.5/5GJ-XZQ | 5 | 18 | 79 | 0.65 | 65 | 7 | 94 | 7.5 | 8.1 | 192F |
| XBD7.2/5GJ-XZQ | 5 | 18 | 79 | 0.72 | 72 | 7 | 104 | 7.5 | 8.1 | 192F |
| XBD7.8/5GJ-XZQ | 5 | 18 | 79 | 0.78 | 78 | 8 | 113 | 7.5 | 8.1 | 192F |
| XBD8.0/5GJ-XZQ | 5 | 18 | 79 | 0.80 | 80 | 8 | 116 | 7.5 | 8.1 | 192F |
| XBD8.5/5GJ-XZQ | 5 | 18 | 79 | 0.85 | 85 | 9 | 123 | 11 | 20 | Q380 |
| XBD9.0/5GJ-XZQ | 5 | 18 | 79 | 0.90 | 90 | 9 | 131 | 11 | 20 | Q380 |
| XBD9.3/5GJ-XZQ | 5 | 18 | 79 | 0.93 | 93 | 9 | 135 | 11 | 20 | Q380 |
| XBD9.8/5GJ-XZQ | 5 | 18 | 79 | 0.98 | 98 | 10 | 142 | 11 | 20 | Q380 |
| XBD10.0/5GJ-XZQ | 5 | 18 | 79 | 1.00 | 100 | 10 | 145 | 11 | 20 | Q380 |
| XBD10.5/5GJ-XZQ | 5 | 18 | 79 | 1.05 | 105 | 11 | 152 | 11 | 20 | Q380 |
| XBD11.0/5GJ-XZQ | 5 | 18 | 79 | 1.10 | 110 | 11 | 160 | 11 | 20 | Q380 |
| XBD12.0/5GJ-XZQ | 5 | 18 | 79 | 1.20 | 120 | 12 | 174 | 15 | 20 | Q380 |
| XBD12.5/5GJ-XZQ | 5 | 18 | 79 | 1.25 | 125 | 13 | 181 | 15 | 20 | Q380 |
| XBD13.0/5GJ-XZQ | 5 | 18 | 79 | 1.30 | 130 | 13 | 189 | 15 | 20 | Q380 |
| XBD13.7/5GJ-XZQ | 5 | 18 | 79 | 1.37 | 137 | 14 | 199 | 15 | 20 | Q380 |
| XBD14.5/5GJ-XZQ | 5 | 18 | 79 | 1.45 | 145 | 15 | 210 | 15 | 20 | Q380 |
| XBD15.0/5GJ-XZQ | 5 | 18 | 79 | 1.50 | 150 | 15 | 218 | 15 | 20 | Q380 |
| XBD15.5/5GJ-XZQ | 5 | 18 | 79 | 1.55 | 155 | 16 | 225 | 15 | 20 | Q380 |
| XBD16.0/5GJ-XZQ | 5 | 18 | 79 | 1.60 | 160 | 16 | 232 | 15 | 20 | Q380 |
| XBD17.0/5GJ-XZQ | 5 | 18 | 79 | 1.70 | 170 | 17 | 247 | 18.5 | 23 | Q385 |
| XBD17.5/5GJ-XZQ | 5 | 18 | 79 | 1.73 | 173 | 17 | 251 | 18.5 | 23 | Q385 |
| XBD18.6/5GJ-XZQ | 5 | 18 | 79 | 1.86 | 186 | 19 | 270 | 18.5 | 23 | Q385 |
| XBD3.0/10GJ-XZQ | 10 | 36 | 159 | 0.30 | 30 | 3 | 44 | 5.5 | 8.1 | 192F |
| XBD3.8/10GJ-XZQ | 10 | 36 | 159 | 0.38 | 38 | 4 | 55 | 7.5 | 8.1 | 192F |
| XBD5.2/10GJ-XZQ | 10 | 36 | 159 | 0.52 | 52 | 5 | 75 | 11 | 20 | Q380 |
| XBD6.0/10GJ-XZQ | 10 | 36 | 159 | 0.65 | 65 | 7 | 94 | 11 | 20 | Q380 |
| XBD6.5/10GJ-XZQ | 10 | 36 | 159 | 0.65 | 65 | 7 | 94 | 15 | 20 | Q380 |
| XBD7.0/10GJ-XZQ | 10 | 36 | 159 | 0.70 | 70 | 7 | 102 | 15 | 20 | Q380 |
| XBD7.8/10GJ-XZQ | 10 | 36 | 159 | 0.78 | 78 | 8 | 113 | 15 | 20 | Q380 |
| XBD8.0/10GJ-XZQ | 10 | 36 | 159 | 0.80 | 80 | 8 | 116 | 18.5 | 23 | Q385 |
| XBD8.5/10GJ-XZQ | 10 | 36 | 159 | 0.85 | 85 | 9 | 123 | 18.5 | 23 | Q385 |
| XBD9.1/10GJ-XZQ | 10 | 36 | 159 | 0.91 | 91 | 9 | 132 | 18.5 | 23 | Q385 |
| XBD10.0/10GJ-XZQ | 10 | 36 | 159 | 1.00 | 100 | 10 | 145 | 18.5 | 23 | Q385 |
| XBD10.4/10GJ-XZQ | 10 | 36 | 159 | 1.04 | 104 | 10 | 151 | 18.5 | 23 | Q385 |
| XBD11.0/10GJ-XZQ | 10 | 36 | 159 | 1.10 | 110 | 11 | 160 | 22 | 29 | Q480 |
| XBD11.7/10GJ-XZQ | 10 | 36 | 159 | 1.17 | 117 | 12 | 170 | 22 | 29 | Q480 |
| XBD12.0/10GJ-XZQ | 10 | 36 | 159 | 1.20 | 120 | 12 | 174 | 30 | 35 | Q485 |
| XBD12.5/10GJ-XZQ | 10 | 36 | 159 | 1.25 | 125 | 13 | 181 | 30 | 35 | Q485 |
| XBD13.0/10GJ-XZQ | 10 | 36 | 159 | 1.30 | 130 | 13 | 189 | 30 | 35 | Q485 |
| XBD13.5/10GJ-XZQ | 10 | 36 | 159 | 1.35 | 135 | 14 | 196 | 30 | 35 | Q485 |
| XBD14.0/10GJ-XZQ | 10 | 36 | 159 | 1.40 | 140 | 14 | 203 | 30 | 35 | Q485 |
| XBD14.3/10GJ-XZQ | 10 | 36 | 159 | 1.43 | 143 | 14 | 207 | 30 | 35 | Q485 |
| XBD15.0/10GJ-XZQ | 10 | 36 | 159 | 1.50 | 150 | 15 | 218 | 30 | 35 | Q485 |
| XBD16.0/10GJ-XZQ | 10 | 36 | 159 | 1.60 | 160 | 16 | 232 | 30 | 35 | Q485 |
| XBD16.9/10GJ-XZQ | 10 | 36 | 159 | 1.69 | 169 | 17 | 245 | 30 | 35 | Q485 |
| XBD18.2/10GJ-XZQ | 10 | 36 | 159 | 1.82 | 182 | 18 | 264 | 37 | 46 | Q490 |
| XBD3.2/15GJ-XZQ | 15 | 54 | 238 | 0.32 | 32 | 3 | 46 | 11 | 20 | Q380 |
| XBD3.6/15GJ-XZQ | 15 | 54 | 238 | 0.36 | 36 | 4 | 52 | 11 | 20 | Q380 |
| XBD4.0/15GJ-XZQ | 15 | 54 | 238 | 0.40 | 40 | 4 | 58 | 11 | 20 | Q380 |
| XBD4.5/15GJ-XZQ | 15 | 54 | 238 | 0.45 | 45 | 5 | 65 | 15 | 20 | Q380 |
| XBD5.0/15GJ-XZQ | 15 | 54 | 238 | 0.50 | 50 | 5 | 73 | 15 | 20 | Q380 |
| XBD5.5/15GJ-XZQ | 15 | 54 | 238 | 0.55 | 55 | 6 | 80 | 15 | 20 | Q380 |
| XBD6.0/15GJ-XZQ | 15 | 54 | 238 | 0.60 | 60 | 6 | 87 | 18.5 | 23 | Q385 |
| XBD6.4/15GJ-XZQ | 15 | 54 | 238 | 0.64 | 64 | 6 | 93 | 18.5 | 23 | Q385 |
| XBD7.2/15GJ-XZQ | 15 | 54 | 238 | 0.72 | 72 | 7 | 104 | 22 | 29 | Q480 |
| XBD8.0/15GJ-XZQ | 15 | 54 | 238 | 0.80 | 80 | 8 | 116 | 22 | 29 | Q480 |
| XBD8.4/15GJ-XZQ | 15 | 54 | 238 | 0.84 | 84 | 8 | 122 | 30 | 35 | Q485 |
| XBD9.0/15GJ-XZQ | 15 | 54 | 238 | 0.90 | 90 | 9 | 131 | 30 | 35 | Q485 |
| XBD9.6/15GJ-XZQ | 15 | 54 | 238 | 0.96 | 96 | 10 | 139 | 30 | 35 | Q485 |
| XBD10.0/15GJ-XZQ | 15 | 54 | 238 | 1.00 | 100 | 10 | 145 | 30 | 35 | Q485 |
| XBD10.5/15GJ-XZQ | 15 | 54 | 238 | 1.05 | 105 | 11 | 152 | 30 | 35 | Q485 |
| XBD11.0/15GJ-XZQ | 15 | 54 | 238 | 1.10 | 110 | 11 | 160 | 30 | 35 | Q485 |
| XBD11.2/15GJ-XZQ | 15 | 54 | 238 | 1.12 | 112 | 11 | 162 | 30 | 35 | Q485 |
| XBD12.0/15GJ-XZQ | 15 | 54 | 238 | 1.20 | 120 | 12 | 174 | 37 | 46 | Q490 |
| XBD12.5/15GJ-XZQ | 15 | 54 | 238 | 1.25 | 125 | 13 | 181 | 37 | 46 | Q490 |
| XBD13.0/15GJ-XZQ | 15 | 54 | 238 | 1.30 | 130 | 13 | 189 | 45 | 50 | Q495 |
| XBD13.5/15GJ-XZQ | 15 | 54 | 238 | 1.35 | 135 | 14 | 196 | 45 | 50 | Q495 |
| XBD14.4/15GJ-XZQ | 15 | 54 | 238 | 1.44 | 144 | 14 | 209 | 45 | 50 | Q495 |
| XBD15.0/15GJ-XZQ | 15 | 54 | 238 | 1.50 | 150 | 15 | 218 | 45 | 50 | Q495 |
| XBD16.0/15GJ-XZQ | 15 | 54 | 238 | 1.60 | 160 | 16 | 232 | 45 | 50 | Q495 |
| XBD2.8/20GJ-XZQ | 20 | 72 | 317 | 0.28 | 28 | 3 | 41 | 11 | 20 | Q380 |
| XBD3.5/20GJ-XZQ | 20 | 72 | 317 | 0.35 | 35 | 4 | 51 | 15 | 20 | Q380 |
| XBD4.2/20GJ-XZQ | 20 | 72 | 317 | 0.42 | 42 | 4 | 61 | 15 | 20 | Q380 |
| XBD5.0/20GJ-XZQ | 20 | 72 | 317 | 0.50 | 50 | 5 | 73 | 18.5 | 23 | Q385 |
| XBD5.6/20GJ-XZQ | 20 | 72 | 317 | 0.56 | 56 | 6 | 81 | 22 | 29 | Q480 |
| XBD5.8/20GJ-XZQ | 20 | 72 | 317 | 0.58 | 58 | 6 | 84 | 22 | 29 | Q480 |
| XBD6.2/20GJ-XZQ | 20 | 72 | 317 | 0.62 | 62 | 6 | 90 | 22 | 29 | Q480 |
| XBD7.0/20GJ-XZQ | 20 | 72 | 317 | 0.70 | 70 | 7 | 102 | 30 | 35 | Q485 |
| XBD7.5/20GJ-XZQ | 20 | 72 | 317 | 0.75 | 75 | 8 | 109 | 30 | 35 | Q485 |
| XBD8.0/20GJ-XZQ | 20 | 72 | 317 | 0.80 | 80 | 8 | 116 | 30 | 35 | Q485 |
| XBD8.5/20GJ-XZQ | 20 | 72 | 317 | 0.85 | 85 | 9 | 123 | 30 | 35 | Q485 |
| XBD9.0/20GJ-XZQ | 20 | 72 | 317 | 0.90 | 90 | 9 | 131 | 37 | 46 | Q490 |
| XBD9.5/20GJ-XZQ | 20 | 72 | 317 | 0.95 | 95 | 10 | 138 | 37 | 46 | Q490 |
| XBD10.0/20GJ-XZQ | 20 | 72 | 317 | 1.00 | 100 | 10 | 145 | 37 | 46 | Q490 |
| XBD10.5/20GJ-XZQ | 20 | 72 | 317 | 1.05 | 105 | 11 | 152 | 45 | 50 | Q495 |
| XBD11.0/20GJ-XZQ | 20 | 72 | 317 | 1.10 | 110 | 11 | 160 | 45 | 50 | Q495 |
| XBD12.0/20GJ-XZQ | 20 | 72 | 317 | 1.20 | 120 | 12 | 174 | 45 | 50 | Q495 |
| XBD12.6/20GJ-XZQ | 20 | 72 | 317 | 1.26 | 126 | 13 | 183 | 45 | 50 | Q495 |
| XBD14.0/20GJ-XZQ | 20 | 72 | 317 | 1.40 | 140 | 14 | 203 | 55 | 63 | 4102QA |
| XBD15.0/20GJ-XZQ | 20 | 72 | 317 | 1.50 | 150 | 15 | 218 | 55 | 63 | 4102QA |
| XBD16.0/20GJ-XZQ | 20 | 72 | 317 | 1.60 | 160 | 16 | 232 | 75 | 90 | 4105ZQ |
| XBD3.0/25GJ-XZQ | 25 | 90 | 396 | 0.30 | 30 | 3 | 44 | 15 | 20 | Q380 |
| XBD3.6/25GJ-XZQ | 25 | 90 | 396 | 0.36 | 36 | 4 | 52 | 15 | 20 | Q380 |
| XBD4.5/25GJ-XZQ | 25 | 90 | 396 | 0.45 | 45 | 5 | 65 | 22 | 29 | Q480 |
| XBD5.0/25GJ-XZQ | 25 | 90 | 396 | 0.50 | 50 | 5 | 73 | 22 | 29 | Q480 |
| XBD5.4/25GJ-XZQ | 25 | 90 | 396 | 0.54 | 54 | 5 | 78 | 30 | 35 | Q485 |
| XBD6.0/25GJ-XZQ | 25 | 90 | 396 | 0.60 | 60 | 6 | 87 | 30 | 35 | Q485 |
| XBD6.5/25GJ-XZQ | 25 | 90 | 396 | 0.65 | 65 | 7 | 94 | 30 | 35 | Q485 |
| XBD7.0/25GJ-XZQ | 25 | 90 | 396 | 0.70 | 70 | 7 | 102 | 37 | 46 | Q490 |
| XBD7.5/25GJ-XZQ | 25 | 90 | 396 | 0.75 | 75 | 8 | 109 | 37 | 46 | Q490 |
| XBD8.0/25GJ-XZQ | 25 | 90 | 396 | 0.80 | 80 | 8 | 116 | 37 | 46 | Q490 |
| XBD8.5/25GJ-XZQ | 25 | 90 | 396 | 0.85 | 85 | 9 | 123 | 45 | 50 | Q495 |
| XBD9.0/25GJ-XZQ | 25 | 90 | 396 | 0.90 | 90 | 9 | 131 | 45 | 50 | Q495 |
| XBD9.5/25GJ-XZQ | 25 | 90 | 396 | 0.95 | 95 | 10 | 138 | 45 | 50 | Q495 |
| XBD10.0/25GJ-XZQ | 25 | 90 | 396 | 1.00 | 100 | 10 | 145 | 45 | 50 | Q495 |
| XBD10.5/25GJ-XZQ | 25 | 90 | 396 | 1.05 | 105 | 11 | 152 | 55 | 63 | 4102QA |
| XBD10.8/25GJ-XZQ | 25 | 90 | 396 | 1.08 | 108 | 11 | 157 | 55 | 63 | 4102QA |
| XBD12.0/25GJ-XZQ | 25 | 90 | 396 | 1.20 | 120 | 12 | 174 | 55 | 63 | 4102QA |
| XBD12.6/25GJ-XZQ | 25 | 90 | 396 | 1.26 | 126 | 13 | 183 | 55 | 63 | 4102QA |
| XBD14.0/25GJ-XZQ | 25 | 90 | 396 | 1.04 | 104 | 10 | 151 | 75 | 90 | 4105ZQ |
| XBD15.0/25GJ-XZQ | 25 | 90 | 396 | 1.50 | 150 | 15 | 218 | 75 | 90 | 4105ZQ |
| XBD16.0/25GJ-XZQ | 25 | 90 | 396 | 1.60 | 160 | 16 | 232 | 75 | 90 | 4105ZQ |
| XBD3.0/30GJ-XZQ | 30 | 108 | 476 | 0.30 | 30 | 3 | 44 | 18.5 | 23 | Q385 |
| XBD3.4/30GJ-XZQ | 30 | 108 | 476 | 0.34 | 34 | 3 | 49 | 18.5 | 23 | Q385 |
| XBD4.0/30GJ-XZQ | 30 | 108 | 476 | 0.40 | 40 | 4 | 58 | 22 | 29 | Q480 |
| XBD4.5/30GJ-XZQ | 30 | 108 | 476 | 0.45 | 45 | 5 | 65 | 30 | 35 | Q485 |
| XBD5.0/30GJ-XZQ | 30 | 108 | 476 | 0.50 | 50 | 5 | 73 | 30 | 35 | Q485 |
| XBD5.5/30GJ-XZQ | 30 | 108 | 476 | 0.55 | 55 | 6 | 80 | 30 | 35 | Q485 |
| XBD6.0/30GJ-XZQ | 30 | 108 | 476 | 0.60 | 60 | 6 | 87 | 30 | 35 | Q485 |
| XBD6.4/30GJ-XZQ | 30 | 108 | 476 | 0.64 | 64 | 6 | 93 | 37 | 46 | Q490 |
| XBD6.9/30GJ-XZQ | 30 | 108 | 476 | 0.69 | 69 | 7 | 100 | 37 | 46 | Q490 |
| XBD7.5/30GJ-XZQ | 30 | 108 | 476 | 0.75 | 75 | 8 | 109 | 37 | 46 | Q490 |
| XBD8.0/30GJ-XZQ | 30 | 108 | 476 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD8.5/30GJ-XZQ | 30 | 108 | 476 | 0.85 | 85 | 9 | 123 | 45 | 50 | Q495 |
| XBD9.0/30GJ-XZQ | 30 | 108 | 476 | 0.90 | 90 | 9 | 131 | 45 | 50 | Q495 |
| XBD9.5/30GJ-XZQ | 30 | 108 | 476 | 0.95 | 95 | 10 | 138 | 55 | 63 | 4102QA |
| XBD10.0/30GJ-XZQ | 30 | 108 | 476 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/30GJ-XZQ | 30 | 108 | 476 | 1.05 | 105 | 11 | 152 | 75 | 90 | 4105ZQ |
| XBD11.0/30GJ-XZQ | 30 | 108 | 476 | 1.10 | 110 | 11 | 160 | 75 | 90 | 4105ZQ |
| XBD12.0/30GJ-XZQ | 30 | 108 | 476 | 1.20 | 120 | 12 | 174 | 75 | 90 | 4105ZQ |
| XBD12.8/30GJ-XZQ | 30 | 108 | 476 | 1.28 | 128 | 13 | 186 | 75 | 90 | 4105ZQ |
| XBD14.0/30GJ-XZQ | 30 | 108 | 476 | 1.40 | 140 | 14 | 203 | 90 | 125 | 6BD-Z |
| XBD15.0/30GJ-XZQ | 30 | 108 | 476 | 1.50 | 150 | 15 | 218 | 90 | 125 | 6BD-Z |
| XBD16.0/30GJ-XZQ | 30 | 108 | 476 | 1.60 | 160 | 16 | 232 | 90 | 125 | 6BD-Z |
| XBD3.0/35GJ-XZQ | 35 | 126 | 555 | 0.30 | 30 | 3 | 44 | 18.5 | 23 | Q385 |
| XBD3.5/35GJ-XZQ | 35 | 126 | 555 | 0.35 | 35 | 4 | 51 | 22 | 29 | Q480 |
| XBD4.0/35GJ-XZQ | 35 | 126 | 555 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.5/35GJ-XZQ | 35 | 126 | 555 | 0.45 | 45 | 5 | 65 | 30 | 35 | Q485 |
| XBD4.8/35GJ-XZQ | 35 | 126 | 555 | 0.48 | 48 | 5 | 70 | 30 | 35 | Q485 |
| XBD5.2/35GJ-XZQ | 35 | 126 | 555 | 0.52 | 52 | 5 | 75 | 37 | 46 | Q490 |
| XBD5.6/35GJ-XZQ | 35 | 126 | 555 | 0.56 | 56 | 6 | 81 | 37 | 46 | Q490 |
| XBD6.0/35GJ-XZQ | 35 | 126 | 555 | 0.60 | 60 | 6 | 87 | 37 | 46 | Q490 |
| XBD6.4/35GJ-XZQ | 35 | 126 | 555 | 0.64 | 64 | 6 | 93 | 37 | 46 | Q490 |
| XBD7.5/35GJ-XZQ | 35 | 126 | 555 | 0.75 | 75 | 8 | 109 | 45 | 50 | Q495 |
| XBD8.0/35GJ-XZQ | 35 | 126 | 555 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD9.0/35GJ-XZQ | 35 | 126 | 555 | 0.90 | 90 | 9 | 131 | 55 | 63 | 4102QA |
| XBD9.5/35GJ-XZQ | 35 | 126 | 555 | 0.95 | 95 | 10 | 138 | 55 | 63 | 4102QA |
| XBD10.0/35GJ-XZQ | 35 | 126 | 555 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD11.0/35GJ-XZQ | 35 | 126 | 555 | 1.10 | 110 | 11 | 160 | 75 | 90 | 4105ZQ |
| XBD12.0/35GJ-XZQ | 35 | 126 | 555 | 1.20 | 120 | 12 | 174 | 75 | 90 | 4105ZQ |
| XBD12.8/35GJ-XZQ | 35 | 126 | 555 | 1.28 | 128 | 13 | 186 | 75 | 90 | 4105ZQ |
| XBD14.0/35GJ-XZQ | 35 | 126 | 555 | 1.40 | 140 | 14 | 203 | 90 | 125 | 6BD-Z |
| XBD15.0/35GJ-XZQ | 35 | 126 | 555 | 1.50 | 150 | 15 | 218 | 90 | 125 | 6BD-Z |
| XBD16.0/35GJ-XZQ | 35 | 126 | 555 | 1.60 | 160 | 16 | 232 | 90 | 125 | 6BD-Z |
| XBD3.0/40GJ-XZQ | 40 | 144 | 634 | 0.30 | 30 | 3 | 44 | 22 | 29 | Q480 |
| XBD3.5/40GJ-XZQ | 40 | 144 | 634 | 0.35 | 35 | 4 | 51 | 30 | 35 | Q485 |
| XBD4.0/40GJ-XZQ | 40 | 144 | 634 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.6/40GJ-XZQ | 40 | 144 | 634 | 0.46 | 46 | 5 | 67 | 30 | 35 | Q485 |
| XBD5.0/40GJ-XZQ | 40 | 144 | 634 | 0.50 | 50 | 5 | 73 | 37 | 46 | Q490 |
| XBD5.5/40GJ-XZQ | 40 | 144 | 634 | 0.55 | 55 | 6 | 80 | 37 | 46 | Q490 |
| XBD6.0/40GJ-XZQ | 40 | 144 | 634 | 0.60 | 60 | 6 | 87 | 37 | 46 | Q490 |
| XBD6.5/40GJ-XZQ | 40 | 144 | 634 | 0.65 | 65 | 7 | 94 | 45 | 50 | Q495 |
| XBD7.0/40GJ-XZQ | 40 | 144 | 634 | 0.70 | 70 | 7 | 102 | 45 | 50 | Q495 |
| XBD7.5/40GJ-XZQ | 40 | 144 | 634 | 0.75 | 75 | 8 | 109 | 45 | 50 | Q495 |
| XBD8.0/40GJ-XZQ | 40 | 144 | 634 | 0.80 | 80 | 8 | 116 | 45 | 50 | Q495 |
| XBD8.5/40GJ-XZQ | 40 | 144 | 634 | 0.85 | 85 | 9 | 123 | 55 | 63 | 4102QA |
| XBD9.0/40GJ-XZQ | 40 | 144 | 634 | 0.90 | 90 | 9 | 131 | 55 | 63 | 4102QA |
| XBD9.5/40GJ-XZQ | 40 | 144 | 634 | 0.95 | 95 | 10 | 138 | 75 | 90 | 4105ZQ |
| XBD10.0/40G | 40 | 144 | 634 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/40G | 40 | 144 | 634 | 1.05 | 105 | 11 | 152 | 75 | 90 | 4105ZQ |
| XBD11.0/40G | 40 | 144 | 634 | 1.10 | 110 | 11 | 160 | 90 | 125 | 6BD-Z |
| XBD12.0/40G | 40 | 144 | 634 | 1.20 | 120 | 12 | 174 | 90 | 125 | 6BD-Z |
| XBD13.0/40G | 40 | 144 | 634 | 1.30 | 130 | 13 | 189 | 90 | 125 | 6BD-Z |
| XBD14.0/40G | 40 | 144 | 634 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/40G | 40 | 144 | 634 | 1.50 | 150 | 15 | 218 | 110 | 155 | 6BD-ZL |
| XBD16.0/40G | 40 | 144 | 634 | 1.60 | 160 | 16 | 232 | 110 | 155 | 6BD-ZL |
| XBD3.0/45GJ-XZQ | 45 | 162 | 714 | 0.30 | 30 | 3 | 44 | 22 | 29 | Q480 |
| XBD4.0/45GJ-XZQ | 45 | 162 | 714 | 0.40 | 40 | 4 | 58 | 30 | 35 | Q485 |
| XBD4.5/45GJ-XZQ | 45 | 162 | 714 | 0.45 | 45 | 5 | 65 | 37 | 46 | Q490 |
| XBD5.0/45GJ-XZQ | 45 | 162 | 714 | 0.50 | 50 | 5 | 73 | 37 | 46 | Q490 |
| XBD5.5/45GJ-XZQ | 45 | 162 | 714 | 0.55 | 55 | 6 | 80 | 45 | 50 | Q495 |
| XBD6.0/45GJ-XZQ | 45 | 162 | 714 | 0.60 | 60 | 6 | 87 | 45 | 50 | Q495 |
| XBD6.5/45GJ-XZQ | 45 | 162 | 714 | 0.65 | 65 | 7 | 94 | 55 | 63 | 4102QA |
| XBD7.0/45GJ-XZQ | 45 | 162 | 714 | 0.70 | 70 | 7 | 102 | 55 | 63 | 4102QA |
| XBD7.5/45GJ-XZQ | 45 | 162 | 714 | 0.75 | 75 | 8 | 109 | 55 | 63 | 4102QA |
| XBD8.0/45GJ-XZQ | 45 | 162 | 714 | 0.80 | 80 | 8 | 116 | 75 | 90 | 4105ZQ |
| XBD8.5/45GJ-XZQ | 45 | 162 | 714 | 0.85 | 85 | 9 | 123 | 75 | 90 | 4105ZQ |
| XBD9.0/45GJ-XZQ | 45 | 162 | 714 | 0.90 | 90 | 9 | 131 | 75 | 90 | 4105ZQ |
| XBD9.5/45GJ-XZQ | 45 | 162 | 714 | 0.95 | 95 | 10 | 138 | 90 | 125 | 6BD-Z |
| XBD10.0/45GJ-XZQ | 45 | 162 | 714 | 1.00 | 100 | 10 | 145 | 90 | 125 | 6BD-Z |
| XBD11.0/45GJ-XZQ | 45 | 162 | 714 | 1.10 | 110 | 11 | 160 | 90 | 125 | 6BD-Z |
| XBD12.0/45GJ-XZQ | 45 | 162 | 714 | 1.20 | 120 | 12 | 174 | 110 | 155 | 6BD-ZL |
| XBD13.0/45GJ-XZQ | 45 | 162 | 714 | 1.30 | 130 | 13 | 189 | 110 | 155 | 6BD-ZL |
| XBD14.0/45GJ-XZQ | 45 | 162 | 714 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/45GJ-XZQ | 45 | 162 | 714 | 1.50 | 150 | 15 | 218 | 110 | 155 | 6BD-ZL |
| XBD16.0/45GJ-XZQ | 45 | 162 | 714 | 1.60 | 160 | 16 | 232 | 110 | 155 | 6BD-ZL |
| XBD3.0/50GJ-XZQ | 50 | 180 | 793 | 0.30 | 30 | 3 | 44 | 30 | 35 | Q485 |
| XBD3.5/50GJ-XZQ | 50 | 180 | 793 | 0.35 | 35 | 4 | 51 | 30 | 35 | Q485 |
| XBD4.0/50GJ-XZQ | 50 | 180 | 793 | 0.40 | 40 | 4 | 58 | 37 | 46 | Q490 |
| XBD4.5/50GJ-XZQ | 50 | 180 | 793 | 0.45 | 45 | 5 | 65 | 37 | 46 | Q490 |
| XBD5.0/50GJ-XZQ | 50 | 180 | 793 | 0.50 | 50 | 5 | 73 | 45 | 50 | Q495 |
| XBD5.5/50GJ-XZQ | 50 | 180 | 793 | 0.55 | 55 | 6 | 80 | 45 | 50 | Q495 |
| XBD6.0/50GJ-XZQ | 50 | 180 | 793 | 0.60 | 60 | 6 | 87 | 55 | 63 | 4102QA |
| XBD6.5/50GJ-XZQ | 50 | 180 | 793 | 0.65 | 65 | 7 | 94 | 55 | 63 | 4102QA |
| XBD7.0/50GJ-XZQ | 50 | 180 | 793 | 0.70 | 70 | 7 | 102 | 55 | 63 | 4102QA |
| XBD7.5/50GJ-XZQ | 50 | 180 | 793 | 0.75 | 75 | 8 | 109 | 75 | 90 | 4105ZQ |
| XBD8.0/50GJ-XZQ | 50 | 180 | 793 | 0.80 | 80 | 8 | 116 | 75 | 90 | 4105ZQ |
| XBD8.5/50GJ-XZQ | 50 | 180 | 793 | 0.85 | 85 | 9 | 123 | 75 | 90 | 4105ZQ |
| XBD9.0/50GJ-XZQ | 50 | 180 | 793 | 0.90 | 90 | 9 | 131 | 75 | 90 | 4105ZQ |
| XBD9.5/50GJ-XZQ | 50 | 180 | 793 | 0.95 | 95 | 10 | 138 | 75 | 90 | 4105ZQ |
| XBD10.0/50GJ-XZQ | 50 | 180 | 793 | 1.00 | 100 | 10 | 145 | 75 | 90 | 4105ZQ |
| XBD10.5/50GJ-XZQ | 50 | 180 | 793 | 1.05 | 105 | 11 | 152 | 90 | 125 | 6BD-Z |
| XBD11.0/50GJ-XZQ | 50 | 180 | 793 | 1.10 | 110 | 11 | 160 | 110 | 155 | 6BD-ZL |
| XBD12.0/50GJ-XZQ | 50 | 180 | 793 | 1.20 | 120 | 12 | 174 | 110 | 155 | 6BD-ZL |
| XBD13.0/50GJ-XZQ | 50 | 180 | 793 | 1.30 | 130 | 13 | 189 | 110 | 155 | 6BD-ZL |
| XBD14.0/50GJ-XZQ | 50 | 180 | 793 | 1.40 | 140 | 14 | 203 | 110 | 155 | 6BD-ZL |
| XBD15.0/50GJ-XZQ | 50 | 180 | 793 | 1.50 | 150 | 15 | 218 | 132 | 175 | 6113IZLD |
| XBD16.0/50GJ-XZQ | 50 | 180 | 793 | 1.60 | 160 | 16 | 232 | 132 | 175 | 6113IZLD |
Related products
InquiryPlease Feel free to give your inquiry in the form below.We will reply you in 8 hours.
Inquiry form · contact details pending
