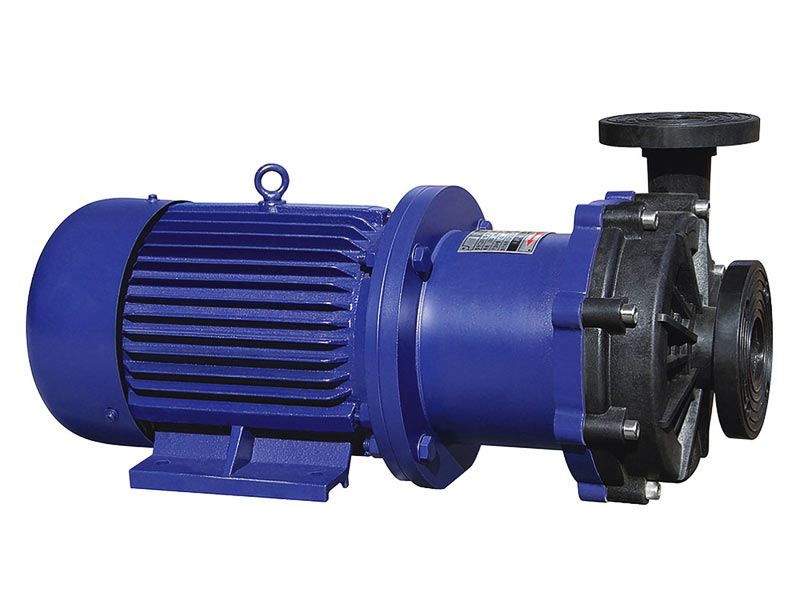

CQF Magnetic Pump
Flow:0.9~25m3/h
Head:3~32m
Caliber:10~65mm
Power:0.025~7.5kW
Speed:2900r/min
Working Pressure:0.6MPa
If you want to get more product information please contact us!
Product Introduction of CQF magnetic pump
In the field of petroleum, chemicals, war industry and pharmaceutical, they are often need to handle some corrosive liquids, for the reason, CQF magnetic pumps can meet the need.
Model explanation
32 CQ (F) 15
32 — Inlet Diameter
CQ (F) — * CQ Stainless Steel Magnetic Pump
* CQF Engineering Plastic Magnetic Pump
15 — Head (m)
In the field of petroleum, chemicals, war industry and pharmaceutical, they are often need to handle some corrosive liquids, for the reason, CQF magnetic pumps can meet the need.
Model explanation
32 CQ (F) 15
32 — Inlet Diameter
CQ (F) — * CQ Stainless Steel Magnetic Pump
* CQF Engineering Plastic Magnetic Pump
15 — Head (m)
1. Application Scope
CQF magnetic pump are widely used in the industries of petroleum, chemicals, pharmaceuticals, printing and dyeing, electroplating, foodstuff, environment protection and etc. to handle corrosive liquid not containing scrap irons, especially inflammable, explosive, volatile, toxic and precious liquids.
2. Using Instruction
CQF magnetic pump are widely used in the industries of petroleum, chemicals, pharmaceuticals, printing and dyeing, electroplating, foodstuff, environment protection and etc. to handle corrosive liquid not containing scrap irons, especially inflammable, explosive, volatile, toxic and precious liquids.
2. Using Instruction

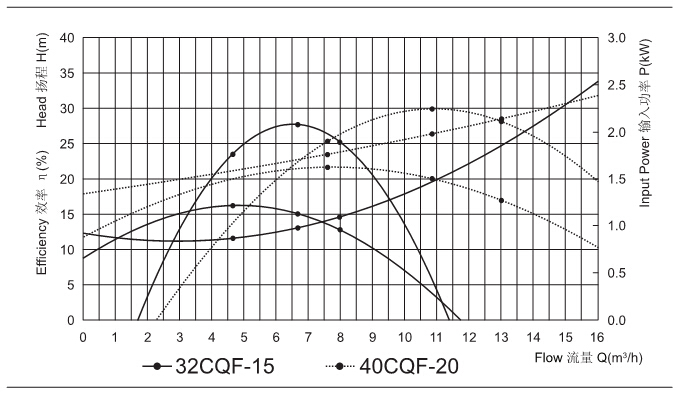

1. Performance curve
2. Specifications
2. Specifications
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| 10CQF-3 | 0.9 | 3 | 0.025 | 2900 | 10/8 |
| 14CQF-5 | 1.2 | 5 | 0.12 | 2900 | 14/10 |
| 16CQF-8X | 1.8 | 8 | 0.18 | 2900 | 16/10 |
| 20CQF-12X | 3 | 12 | 0.37 | 2900 | 20/15 |
| 14CQF-5 | 1.2 | 5 | 0.12 | 2900 | 14/10 |
| 16CQF-8X | 1.8 | 8 | 0.18 | 2900 | 16/10 |
| 20CQF-12X | 3 | 12 | 0.37 | 2900 | 20/15 |
| 25CQF-15X | 5.4 | 15 | 1.1 | 2900 | 25/20 |
| 32CQF-15X | 6.6 | 15 | 1.1 | 2900 | 32/25 |
| 32CQF-25 | 4.8 | 25 | 1.1 | 2900 | 32/25 |
| 32CQF-25N | 4.8 | 25 | 1.5 | 2900 | 32/25 |
| 40CQF-20X | 10.8 | 20 | 2.2 | 2900 | 40/32 |
| 50CQF-25X | 12.5 | 25 | 3 | 2900 | 50/40 |
| 50CQF-32X | 12.5 | 32 | 4 | 2900 | 50/40 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | |||||
