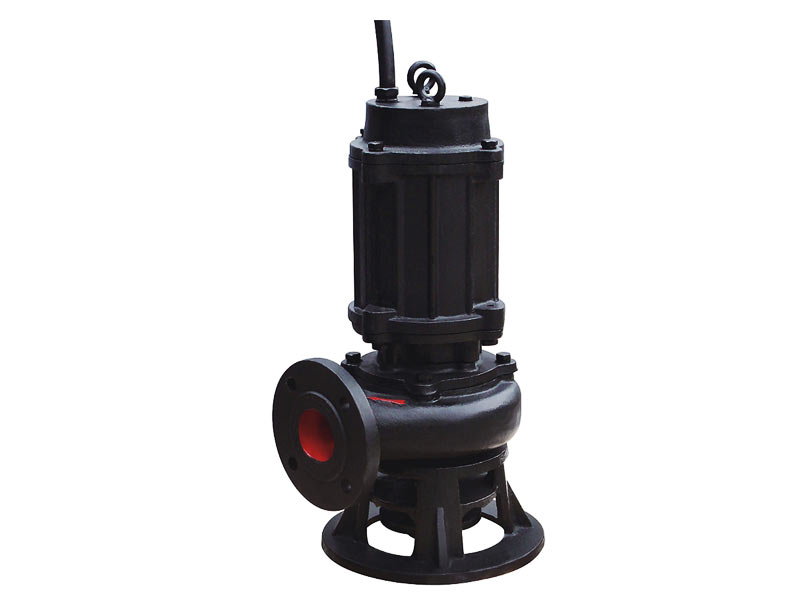

JYWQ,JPWQ Submersible Sewage Pump
Flow:2~6000m 3/h
Head:1~70m
Caliber:25~800mm
Power:0.37/2P~355/10P kW
Speed:740~2900r/min
Working Pressure:1.0MPa
If you want to get more product information please contact us!
Product Introduction of JYWQ, JPWQ submersible sewage pump
It is suitable for stationary commercial plant for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant's water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt.
Model explanation
50 JYWQ (JPWQ) P 15 – 15 – 1200 – 1.5
50 — Outlet caliber (6kg flange)
JYWQ (JPWQ) — * Automatic agitating submersible sewage pump
* Automatic agitating submersible sewage pump (stainless steel)
P — Stainless steel
15 — Flow
15 — Head
1200 — Agitating scope
1.5 — Motor power
It is suitable for stationary commercial plant for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant's water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt.
Model explanation
50 JYWQ (JPWQ) P 15 – 15 – 1200 – 1.5
50 — Outlet caliber (6kg flange)
JYWQ (JPWQ) — * Automatic agitating submersible sewage pump
* Automatic agitating submersible sewage pump (stainless steel)
P — Stainless steel
15 — Flow
15 — Head
1200 — Agitating scope
1.5 — Motor power
1. Application Scope
It is mainly used in petroleum, chemical industry, steel, paper making, and sugar making etc trades. It can be also used to transport sewage, waste water, and city waste water with solid grain and serious long fiber.
2. Using Instruction
1. Permissible temperature range mustn't b over 60°c, permissible density 1-1.3kg/dm3, their PH within 4-10
2. The material is made of stainless steel, can be used even many corrosive media.
It is mainly used in petroleum, chemical industry, steel, paper making, and sugar making etc trades. It can be also used to transport sewage, waste water, and city waste water with solid grain and serious long fiber.
2. Using Instruction
1. Permissible temperature range mustn't b over 60°c, permissible density 1-1.3kg/dm3, their PH within 4-10
2. The material is made of stainless steel, can be used even many corrosive media.

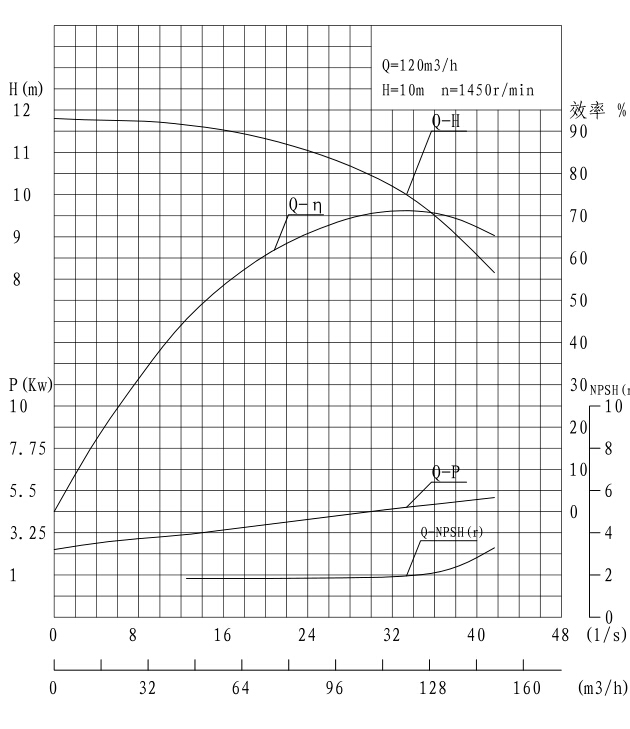

1. Performance curve
2. Specifications
2. Specifications
| Model | Flow m³/h | Head m | Power kw | Speed r/min |
| 25JYWQ2-4-0.20 | 2 | 4 | 0.2 | 2900 |
| 25JYWQ2-6-0.25 | 2 | 6 | 0.25 | 2900 |
| 25JYWQ5-6-0.28 | 5 | 6 | 0.28 | 2900 |
| 25JYWQ4-8-0.28 | 4 | 8 | 0.28 | 2900 |
| 25JYWQ2-10-0.37 | 2 | 10 | 0.37 | 2900 |
| 25JYWQ4-10-0.55 | 4 | 10 | 0.55 | 2900 |
| 25JYWQ6-10-0.75 | 6 | 10 | 0.75 | 2900 |
| 25JYWQ8-12-0.75 | 8 | 12 | 0.75 | 2900 |
| 25JYWQ6-15-1.1 | 6 | 15 | 1.1 | 2900 |
| 25JYWQ8-22-1.1 | 8 | 22 | 1.1 | 2900 |
| 25JYWQ10-15-1.5 | 10 | 15 | 1.5 | 2900 |
| 25JYWQ10-20-2.2 | 10 | 20 | 2.2 | 2900 |
| 32JYWQ8-12-0.75 | 8 | 12 | 0.75 | 2900 |
| 32JYWQ6-15-1.1 | 6 | 15 | 1.1 | 2900 |
| 32JYWQ8-22-1.1 | 8 | 22 | 1.1 | 2900 |
| 32JYWQ12-15-1.5 | 12 | 15 | 1.5 | 2900 |
| 32JYWQ10-20-2.2 | 10 | 20 | 2.2 | 2900 |
| 40JYWQ10-10-0.75 | 10 | 10 | 0.75 | 2900 |
| 40JYWQ12-8-0.75 | 12 | 8 | 0.75 | 2900 |
| 40JYWQ10-7-0.75 | 20 | 7 | 0.75 | 2900 |
| 40JYWQ10-12-1.1 | 10 | 12 | 1.1 | 2900 |
| 40JYWQ8-15-1.1 | 8 | 15 | 1.1 | 2900 |
| 40JYWQ8-20-1.5 | 8 | 20 | 1.5 | 2900 |
| 40JYWQ12-15-1.5 | 12 | 15 | 1.5 | 2900 |
| 40JYWQ15-20-2.2 | 15 | 20 | 2.2 | 2900 |
| 40JYWQ10-25-2.2 | 10 | 25 | 2.2 | 2900 |
| 50JYWQ27-5-0.75 | 27 | 5 | 0.75 | 2900 |
| 50JYWQ20-7-0.75 | 20 | 7 | 0.75 | 2900 |
| 50JYWQ15-8-0.75 | 15 | 8 | 0.75 | 2900 |
| 50JYWQ10-10-0.75 | 10 | 10 | 0.75 | 2900 |
| 50JYWQ10-7-0.75 | 10 | 7 | 0.75 | 2900 |
| 50JYWQ8-12-0.75 | 8 | 12 | 0.75 | 2900 |
| 50JYWQ10-12-1.1 | 10 | 12 | 1.1 | 2900 |
| 50JYWQ20-10-1.1 | 20 | 10 | 1.1 | 2900 |
| 50JYWQ15-12-1.1 | 15 | 12 | 1.1 | 2900 |
| 50JYWQ10-15-1.5 | 10 | 15 | 1.5 | 2900 |
| 50JYWQ10-18-1.5 | 10 | 18 | 1.5 | 2900 |
| 50JYWQ15-15-1.5 | 15 | 15 | 1.5 | 2900 |
| 50JYWQ20-15-1.5 | 20 | 15 | 1.5 | 2900 |
| 50JYWQ25-10-1.5 | 25 | 10 | 1.5 | 2900 |
| 50JYWQ33-7-1.5 | 33 | 7 | 1.5 | 2900 |
| 50JYWQ40-7-1.5 | 40 | 7 | 1.5 | 2900 |
| 50JYWQ25-7-1.5 | 25 | 7 | 1.5 | 2900 |
| 50JYWQ20-10-1.5 | 20 | 10 | 1.5 | 2900 |
| 50JYWQ10-20-1.5 | 10 | 20 | 1.5 | 2900 |
| 50JYWQ25-12-1.5 | 25 | 12 | 1.5 | 2900 |
| 50JYWQ15-20-2.2 | 15 | 20 | 2.2 | 2900 |
| 50JYWQ15-18-2.2 | 15 | 18 | 2.2 | 2900 |
| 50JYWQ15-25-2.2 | 15 | 25 | 2.2 | 2900 |
| 50JYWQ25-15-2.2 | 25 | 15 | 2.2 | 2900 |
| 50JYWQ10-25-2.2 | 10 | 25 | 2.2 | 2900 |
| 50JYWQ30-10-2.2 | 30 | 10 | 2.2 | 2900 |
| 50JYWQ27-15-2.2 | 27 | 15 | 2.2 | 2900 |
| 50JYWQ30-14-2.2 | 30 | 14 | 2.2 | 2900 |
| 50JYWQ42-9-2.2 | 42 | 9 | 2.2 | 2900 |
| 50JYWQ30-10-2.2 | 30 | 10 | 2.2 | 2900 |
| 50JYWQ20-22-3 | 20 | 22 | 3 | 2900 |
| 50JYWQ20-25-3 | 20 | 25 | 3 | 2900 |
| 50JYWQ25-18-3 | 25 | 18 | 3 | 2900 |
| 50JYWQ17-25-3 | 17 | 25 | 3 | 2900 |
| 50JYWQ15-30-3 | 15 | 30 | 3 | 2900 |
| 50JYWQ25-20-4 | 25 | 20 | 4 | 2900 |
| 50JYWQ30-18-4 | 30 | 18 | 4 | 2900 |
| 50JYWQ10-40-4 | 10 | 40 | 4 | 2900 |
| 50JYWQ15-32-4 | 15 | 32 | 4 | 2900 |
| 50JYWQ40-15-4 | 40 | 15 | 4 | 2900 |
| 50JYWQ20-30-5.5 | 20 | 30 | 5.5 | 2900 |
| 50JYWQ25-32-5.5 | 25 | 32 | 5.5 | 2900 |
| 50JYWQ12-40-5.5 | 12 | 40 | 5.5 | 2900 |
| 50JYWQ25-25-5.5 | 25 | 25 | 5.5 | 2900 |
| 50JYWQ20-40-7.5 | 20 | 40 | 7.5 | 2900 |
| 50JYWQ25-35-7.5 | 25 | 35 | 7.5 | 2900 |
| 50JYWQ30-30-7.5 | 30 | 30 | 7.5 | 2900 |
| 50JYWQ15-50-7.5 | 15 | 50 | 7.5 | 2900 |
| 50JYWQ18-45-7.5 | 18 | 45 | 7.5 | 2900 |
| 50JYWQ30-40-7.5 | 30 | 40 | 7.5 | 2900 |
| 65JYWQ25-10-1.5 | 25 | 10 | 1.5 | 2900 |
| 65JYWQ15-18-1.5 | 15 | 18 | 1.5 | 2900 |
| 65JYWQ25-8-1.5 | 25 | 8 | 1.5 | 2900 |
| 65JYWQ20-12-1.5 | 20 | 12 | 1.5 | 2900 |
| 65JYWQ35-5-1.5 | 35 | 5 | 1.5 | 2900 |
| 65JYWQ35-7-2.2 | 35 | 7 | 2.2 | 2900 |
| 65JYWQ30-10-2.2 | 30 | 10 | 2.2 | 2900 |
| 65JYWQ25-12-2.2 | 25 | 12 | 2.2 | 2900 |
| 65JYWQ25-15-2.2 | 25 | 15 | 2.2 | 2900 |
| 65JYWQ40-9-3 | 40 | 9 | 3 | 2900 |
| 65JYWQ35-10-3 | 35 | 10 | 3 | 2900 |
| 65JYWQ30-15-3 | 30 | 15 | 3 | 2900 |
| 65JYWQ25-18-3 | 25 | 18 | 3 | 2900 |
| 65JYWQ20-22-3 | 20 | 22 | 3 | 2900 |
| 65JYWQ37-13-3 | 37 | 13 | 3 | 2900 |
| 65JYWQ30-20-4 | 30 | 20 | 4 | 2900 |
| 65JYWQ30-22-4 | 30 | 22 | 4 | 2900 |
| 65JYWQ25-20-4 | 25 | 20 | 4 | 2900 |
| 65JYWQ40-15-4 | 40 | 15 | 4 | 2900 |
| 65JYWQ25-30-5.5 | 25 | 30 | 5.5 | 2900 |
| 65JYWQ40-20-5.5 | 40 | 20 | 5.5 | 2900 |
| 65JYWQ32-25-5.5 | 32 | 25 | 5.5 | 2900 |
| 65JYWQ30-30-5.5 | 30 | 30 | 5.5 | 2900 |
| 65JYWQ30-40-7.5 | 30 | 40 | 7.5 | 2900 |
| 65JYWQ40-30-7.5 | 40 | 30 | 7.5 | 2900 |
| 65JYWQ30-45-11 | 30 | 45 | 11 | 2900 |
| 65JYWQ25-50-11 | 25 | 50 | 11 | 2900 |
| 65JYWQ20-55-11 | 20 | 55 | 11 | 2900 |
| 65JYWQ30-50-15 | 30 | 50 | 15 | 2900 |
| 65JYWQ35-50-15 | 35 | 50 | 15 | 2900 |
| 65JYWQ25-55-15 | 25 | 55 | 15 | 2900 |
| 65JYWQ25-60-15 | 25 | 60 | 15 | 2900 |
| 65JYWQ35-60-18.5 | 35 | 60 | 18.5 | 2900 |
| 65JYWQ30-55-18.5 | 30 | 55 | 18.5 | 2900 |
| 65JYWQ30-60-18.5 | 30 | 60 | 18.5 | 2900 |
| 65JYWQ25-70-18.5 | 25 | 70 | 18.5 | 2900 |
| 80JYWQ35-6-1.5 | 35 | 6 | 1.5 | 2900 |
| 80JYWQ35-7-1.5 | 35 | 7 | 1.5 | 2900 |
| 80JYWQ30-10-1.5 | 30 | 10 | 1.5 | 2900 |
| 80JYWQ20-15-1.5 | 20 | 15 | 1.5 | 2900 |
| 80JYWQ25-12-1.5 | 25 | 12 | 1.5 | 2900 |
| 80JYWQ30-7-1.5 | 30 | 7 | 1.5 | 2900 |
| 80JYWQ40-7-2.2 | 40 | 7 | 2.2 | 2900 |
| 80JYWQ30-8-2.2 | 30 | 8 | 2.2 | 2900 |
| 80JYWQ35-9-2.2 | 35 | 9 | 2.2 | 2900 |
| 80JYWQ30-12-2.2 | 30 | 12 | 2.2 | 2900 |
| 80JYWQ50-7-3 | 50 | 7 | 3 | 2900 |
| 80JYWQ45-10-3 | 45 | 10 | 3 | 2900 |
| 80JYWQ40-10-3 | 40 | 10 | 3 | 2900 |
| 80JYWQ30-15-3 | 30 | 15 | 3 | 2900 |
| 80JYWQ43-13-3 | 43 | 13 | 3 | 2900 |
| 80JYWQ40-15-4 | 40 | 15 | 4 | 2900 |
| 80JYWQ60-10-4 | 60 | 10 | 4 | 2900 |
| 80JYWQ40-12-4 | 40 | 12 | 4 | 2900 |
| 80JYWQ35-18-4 | 35 | 18 | 4 | 2900 |
| 80JYWQ30-20-4 | 30 | 20 | 4 | 2900 |
| 80JYWQ65-10-5.5 | 65 | 10 | 5.5 | 2900 |
| 80JYWQ65-15-5.5 | 65 | 15 | 5.5 | 2900 |
| 80JYWQ50-20-5.5 | 50 | 20 | 5.5 | 2900 |
| 80JYWQ40-25-5.5 | 40 | 25 | 5.5 | 2900 |
| 80JYWQ30-30-5.5 | 30 | 30 | 5.5 | 2900 |
| 80JYWQ65-25-7.5 | 65 | 25 | 7.5 | 2900 |
| 80JYWQ80-15-7.5 | 80 | 15 | 7.5 | 2900 |
| 80JYWQ35-28-7.5 | 35 | 28 | 7.5 | 2900 |
| 80JYWQ45-30-7.5 | 45 | 30 | 7.5 | 2900 |
| 80JYWQ40-30-7.5 | 40 | 30 | 7.5 | 2900 |
| 80JYWQ30-40-7.5 | 30 | 40 | 7.5 | 2900 |
| 80JYWQ50-30-11 | 50 | 30 | 11 | 2900 |
| 80JYWQ40-40-11 | 40 | 40 | 11 | 2900 |
| 80JYWQ50-35-11 | 50 | 35 | 11 | 2900 |
| 80JYWQ30-50-11 | 30 | 50 | 11 | 2900 |
| 80JYWQ50-50-15 | 50 | 50 | 15 | 2900 |
| 80JYWQ40-60-15 | 40 | 60 | 15 | 2900 |
| 80JYWQ40-50-15 | 40 | 50 | 15 | 2900 |
| 80JYWQ45-45-15 | 45 | 45 | 15 | 2900 |
| 80JYWQ30-70-15 | 30 | 70 | 15 | 2900 |
| 100JYWQ70-6-3 | 70 | 6 | 3 | 1450 |
| 100JYWQ85-7-4 | 85 | 7 | 4 | 1450 |
| 100JYWQ85-10-4 | 85 | 10 | 4 | 1450 |
| 100JYWQ100-6-4 | 100 | 6 | 4 | 1450 |
| 100JYWQ70-15-4 | 70 | 15 | 4 | 1450 |
| 100JYWQ80-13-5.5 | 80 | 13 | 5.5 | 1450/2900 |
| 100JYWQ65-15-5.5 | 65 | 15 | 5.5 | 1450/2900 |
| 100JYWQ65-20-5.5 | 65 | 20 | 5.5 | 1450/2900 |
| 100JYWQ100-10-5.5 | 100 | 10 | 5.5 | 1450/2900 |
| 100JYWQ110-10-5.5 | 110 | 10 | 5.5 | 1450/2900 |
| 100JYWQ80-10-5.5 | 80 | 10 | 5.5 | 1450/2900 |
| 100JYWQ120-7-7.5 | 120 | 7 | 7.5 | 1450/2900 |
| 100JYWQ80-15-7.5 | 80 | 15 | 7.5 | 1450/2900 |
| 100JYWQ80-20-7.5 | 80 | 20 | 7.5 | 1450/2900 |
| 100JYWQ70-22-7.5 | 70 | 22 | 7.5 | 1450/2900 |
| 100JYWQ85-20-7.5 | 85 | 20 | 7.5 | 1450/2900 |
| 100JYWQ100-15-7.5 | 100 | 15 | 7.5 | 1450/2900 |
| 100JYWQ100-20-11 | 100 | 20 | 11 | 1450/2900 |
| 100JYWQ120-20-11 | 120 | 20 | 11 | 1450/2900 |
| 100JYWQ120-15-11 | 120 | 15 | 11 | 1450/2900 |
| 100JYWQ100-25-11 | 100 | 25 | 11 | 1450/2900 |
| 100JYWQ100-30-15 | 100 | 30 | 15 | 1450/2900 |
| 100JYWQ120-25-15 | 120 | 25 | 15 | 1450/2900 |
| 100JYWQ120-28-15 | 120 | 28 | 15 | 1450/2900 |
| 100JYWQ120-30-18.5 | 120 | 30 | 18.5 | 1450/2900 |
| 100JYWQ100-35-18.5 | 100 | 35 | 18.5 | 1450/2900 |
| 100JYWQ100-40-22 | 100 | 40 | 22 | 1450/2900 |
| 100JYWQ120-35-22 | 120 | 35 | 22 | 1450/2900 |
| 100JYWQ100-45-30 | 100 | 45 | 30 | 1450 |
| 100JYWQ120-40-30 | 120 | 40 | 30 | 1450 |
| 100JYWQ100-50-37 | 100 | 50 | 37 | 1450 |
| 100JYWQ120-45-37 | 120 | 45 | 37 | 1450 |
| 100JYWQ100-60-45 | 100 | 60 | 45 | 1450 |
| 100JYWQ120-50-45 | 120 | 50 | 45 | 1450 |
| 100JYWQ100-65-55 | 100 | 65 | 55 | 1450 |
| 100JYWQ120-60-55 | 120 | 60 | 55 | 1450 |
| 100JYWQ100-70-55 | 100 | 70 | 55 | 1450 |
| 100JYWQ100-80-75 | 100 | 80 | 75 | 1450 |
| 100JYWQ120-70-75 | 120 | 70 | 75 | 1450 |
| 150JYWQ150-4-5.5 | 150 | 4 | 5.5 | 1450 |
| 150JYWQ150-5-5.5 | 150 | 5 | 5.5 | 1450 |
| 150JYWQ120-6-5.5 | 120 | 6 | 5.5 | 1450 |
| 150JYWQ120-10-5.5 | 120 | 10 | 5.5 | 1450 |
| 150JYWQ150-7-7.5 | 150 | 7 | 7.5 | 1450 |
| 150JYWQ120-12-7.5 | 120 | 12 | 7.5 | 1450 |
| 150JYWQ145-9-7.5 | 145 | 9 | 7.5 | 1450 |
| 150JYWQ110-15-7.5 | 110 | 15 | 7.5 | 1450 |
| 150JYWQ200-7-11 | 200 | 7 | 11 | 1450 |
| 150JYWQ150-12-11 | 150 | 12 | 11 | 1450 |
| 150JYWQ200-10-15 | 200 | 10 | 15 | 1450 |
| 150JYWQ200-13-15 | 200 | 13 | 15 | 1450 |
| 150JYWQ150-20-15 | 150 | 20 | 15 | 1450 |
| 150JYWQ180-15-15 | 180 | 15 | 15 | 1450 |
| 150JYWQ180-20-18.5 | 180 | 20 | 18.5 | 1450 |
| 150JYWQ200-15-18.5 | 200 | 15 | 18.5 | 1450 |
| 150JYWQ150-25-18.5 | 150 | 25 | 18.5 | 1450 |
| 150JYWQ150-26-18.5 | 150 | 26 | 18.5 | 1450 |
| 150JYWQ150-30-22 | 150 | 30 | 22 | 1450 |
| 150JYWQ200-20-22 | 200 | 20 | 22 | 1450 |
| 150JYWQ180-25-22 | 180 | 25 | 22 | 1450 |
| 150JYWQ200-25-30 | 200 | 25 | 30 | 1450 |
| 150JYWQ240-20-30 | 240 | 20 | 30 | 1450 |
| 150JYWQ300-18-30 | 300 | 18 | 30 | 1450 |
| 150JYWQ250-22-30 | 250 | 22 | 30 | 1450 |
| 150JYWQ180-28-30 | 180 | 28 | 30 | 1450 |
| 150JYWQ150-40-30 | 150 | 40 | 30 | 1450 |
| 150JYWQ150-35-37 | 150 | 35 | 37 | 1450 |
| 150JYWQ180-30-37 | 180 | 30 | 37 | 1450 |
| 150JYWQ200-30-37 | 200 | 30 | 37 | 1450 |
| 150JYWQ250-25-37 | 250 | 25 | 37 | 1450 |
| 150JYWQ180-30-37 | 180 | 30 | 37 | 1450 |
| 150JYWQ180-40-45 | 180 | 40 | 45 | 1450 |
| 150JYWQ200-38-45 | 200 | 38 | 45 | 1450 |
| 150JYWQ150-50-45 | 150 | 50 | 45 | 1450 |
| 150JYWQ200-40-45 | 200 | 40 | 45 | 1450 |
| 150JYWQ200-50-55 | 200 | 50 | 55 | 1450 |
| 150JYWQ200-55-55 | 200 | 55 | 55 | 1450 |
| 200JYWQ300-4-7.5 | 300 | 4 | 7.5 | 1450 |
| 200JYWQ350-5-11 | 350 | 5 | 11 | 1450 |
| 200JYWQ300-7-11 | 300 | 7 | 11 | 1450 |
| 200JYWQ250-11-15 | 250 | 11 | 15 | 1450 |
| 200JYWQ300-8-15 | 300 | 8 | 15 | 1450 |
| 200JYWQ250-15-18.5 | 250 | 15 | 18.5 | 1450 |
| 200JYWQ300-9-18.5 | 300 | 9 | 18.5 | 1450 |
| 200JYWQ400-10-22 | 400 | 10 | 22 | 1450 |
| 200JYWQ360-12-22 | 360 | 12 | 22 | 1450 |
| 200JYWQ300-15-22 | 300 | 15 | 22 | 1450 |
| 200JYWQ300-18-30 | 300 | 18 | 30 | 1450 |
| 200JYWQ400-13-30 | 400 | 13 | 30 | 1450 |
| 200JYWQ450-10-30 | 450 | 10 | 30 | 1450 |
| 200JYWQ300-20-30 | 300 | 20 | 30 | 1450 |
| 200JYWQ250-22-30 | 250 | 22 | 30 | 1450 |
| 200JYWQ200-30-30 | 200 | 30 | 30 | 1450 |
| 200JYWQ400-18-37 | 400 | 18 | 37 | 1450 |
| 200JYWQ450-15-37 | 450 | 15 | 37 | 1450 |
| 200JYWQ200-35-37 | 200 | 35 | 37 | 1450 |
| 200JYWQ300-25-37 | 300 | 25 | 37 | 1450 |
| 200JYWQ200-40-45 | 200 | 40 | 45 | 1450 |
| 200JYWQ250-35-45 | 250 | 35 | 45 | 1450 |
| 200JYWQ350-25-45 | 350 | 25 | 45 | 1450 |
| 200JYWQ400-20-45 | 400 | 20 | 45 | 1450 |
| 200JYWQ250-40-55 | 250 | 40 | 55 | 1450 |
| 200JYWQ400-25-55 | 400 | 25 | 55 | 1450 |
| 200JYWQ450-22-55 | 450 | 22 | 55 | 1450 |
| 200JYWQ300-40-75 | 300 | 40 | 75 | 1450 |
| 200JYWQ250-50-75 | 250 | 50 | 75 | 1450 |
| 200JYWQ200-60-75 | 200 | 60 | 75 | 1450 |
| 200JYWQ300-45-90 | 300 | 45 | 90 | 1450 |
| 200JYWQ400-40-90 | 400 | 40 | 90 | 1450 |
| 200JYWQ300-50-110 | 300 | 50 | 110 | 1450 |
| 200JYWQ400-45-110 | 400 | 45 | 110 | 1450 |
| 200JYWQ300-60-132 | 300 | 60 | 132 | 1450 |
| 200JYWQ300-70-160 | 300 | 70 | 160 | 1450 |
| 250JYWQ500-4-15 | 500 | 4 | 15 | 980 |
| 250JYWQ500-5-15 | 500 | 5 | 15 | 980 |
| 250JYWQ400-7-15 | 400 | 7 | 15 | 980 |
| 250JYWQ600-5-18.5 | 600 | 5 | 18.5 | 980 |
| 250JYWQ500-5.5-18.5 | 500 | 5.5 | 18.5 | 980 |
| 250JYWQ400-8-18.5 | 400 | 8 | 18.5 | 980 |
| 250JYWQ550-5-22 | 550 | 5 | 22 | 980 |
| 250JYWQ400-10-22 | 400 | 10 | 22 | 980 |
| 250JYWQ600-7-22 | 600 | 7 | 22 | 980 |
| 250JYWQ600-9-30 | 600 | 9 | 30 | 980 |
| 250JYWQ500-10-30 | 500 | 10 | 30 | 980 |
| 250JYWQ500-12-30 | 500 | 12 | 30 | 980 |
| 250JYWQ600-12-37 | 600 | 12 | 37 | 1450 |
| 250JYWQ500-15-37 | 500 | 15 | 37 | 1450 |
| 250JYWQ600-15-45 | 600 | 15 | 45 | 1450 |
| 250JYWQ500-18-45 | 500 | 18 | 45 | 1450 |
| 250JYWQ600-20-55 | 600 | 20 | 55 | 1450 |
| 250JYWQ500-25-55 | 500 | 25 | 55 | 1450 |
| 250JYWQ600-25-75 | 600 | 25 | 75 | 1450 |
| 250JYWQ600-30-90 | 600 | 30 | 90 | 1450 |
| 250JYWQ600-35-90 | 600 | 35 | 90 | 1450 |
| 250JYWQ500-40-90 | 500 | 40 | 90 | 1450 |
| 250JYWQ600-38-110 | 600 | 38 | 110 | 1450 |
| 250JYWQ600-40-110 | 600 | 40 | 110 | 1450 |
| 250JYWQ500-45-110 | 500 | 45 | 110 | 1450 |
| 250JYWQ600-50-132 | 600 | 50 | 132 | 1450 |
| 250JYWQ500-55-132 | 500 | 55 | 132 | 1450 |
| 300JYWQ800-4-18.5 | 800 | 4 | 18.5 | 980 |
| 300JYWQ600-5-22 | 600 | 5 | 22 | 980 |
| 300JYWQ800-6-22 | 800 | 6 | 22 | 980 |
| 300JYWQ600-7-22 | 600 | 7 | 22 | 980 |
| 300JYWQ800-7-30 | 800 | 7 | 30 | 980 |
| 300JYWQ900-5-30 | 900 | 5 | 30 | 980 |
| 300JYWQ800-9-37 | 800 | 9 | 37 | 980 |
| 300JYWQ900-6-37 | 900 | 6 | 37 | 980 |
| 300JYWQ800-12-45 | 800 | 12 | 45 | 1450 |
| 300JYWQ800-10-45 | 800 | 10 | 45 | 1450 |
| 300JYWQ680-15-45 | 680 | 15 | 45 | 1450 |
| 300JYWQ800-15-55 | 800 | 15 | 55 | 1450 |
| 300JYWQ900-12-55 | 900 | 12 | 55 | 1450 |
| 300JYWQ600-20-55 | 600 | 20 | 55 | 1450 |
| 300JYWQ800-20-75 | 800 | 20 | 75 | 1450 |
| 300JYWQ600-25-75 | 600 | 25 | 75 | 1450 |
| 300JYWQ800-25-90 | 800 | 25 | 90 | 1450 |
| 300JYWQ950-20-90 | 950 | 20 | 90 | 1450 |
| 300JYWQ1000-25-110 | 1000 | 25 | 110 | 1450 |
| 300JYWQ800-30-110 | 800 | 30 | 110 | 1450 |
| 300JYWQ800-35-132 | 800 | 35 | 132 | 1450 |
| 300JYWQ800-40-160 | 800 | 40 | 160 | 1450 |
| 300JYWQ800-45-185 | 800 | 45 | 185 | 1450 |
| 350JYWQ1000-4-22 | 1000 | 4 | 22 | 980 |
| 350JYWQ1200-4-30 | 1200 | 4 | 30 | 980 |
| 350JYWQ1000-5-30 | 1000 | 5 | 30 | 980 |
| 350JYWQ1000-6-37 | 1000 | 6 | 37 | 980 |
| 350JYWQ1200-5-37 | 1200 | 5 | 37 | 980 |
| 350JYWQ1000-8-45 | 1000 | 8 | 45 | 980 |
| 350JYWQ1200-7-45 | 1200 | 7 | 45 | 980 |
| 350JYWQ1100-10-55 | 1100 | 10 | 55 | 980 |
| 350JYWQ1000-10-55 | 1000 | 10 | 55 | 980 |
| 350JYWQ1200-8-55 | 1200 | 8 | 55 | 980 |
| 350JYWQ1000-12-55 | 1000 | 12 | 55 | 980 |
| 350JYWQ1180-13-75 | 1180 | 13 | 75 | 980 |
| 350JYWQ1300-10-75 | 1300 | 10 | 75 | 980 |
| 350JYWQ1000-15-75 | 1000 | 15 | 75 | 980 |
| 350JYWQ1200-12-75 | 1200 | 12 | 75 | 980 |
| 350JYWQ1450-14-90 | 1450 | 14 | 90 | 980 |
| 350JYWQ1130-18-90 | 1130 | 18 | 90 | 980 |
| 350JYWQ1200-15-90 | 1200 | 15 | 90 | 980 |
| 350JYWQ1200-20-110 | 1200 | 20 | 110 | 980 |
| 350JYWQ1250-20-110 | 1250 | 20 | 110 | 980 |
| 350JYWQ1500-20-132 | 1500 | 20 | 132 | 740 |
| 350JYWQ1200-25-132 | 1200 | 25 | 132 | 740 |
| 350JYWQ1500-26-160 | 1500 | 26 | 160 | 980 |
| 350JYWQ1200-30-160 | 1200 | 30 | 160 | 980 |
| 350JYWQ1500-30-185 | 1500 | 30 | 185 | 1450 |
| 350JYWQ1500-32-200 | 1500 | 32 | 200 | 1450 |
| 350JYWQ1500-35-220 | 1500 | 35 | 220 | 1450 |
| 350JYWQ1500-40-250 | 1500 | 40 | 250 | 1450 |
| 350JYWQ1500-45-280 | 1500 | 45 | 280 | 1450 |
| 350JYWQ1500-50-315 | 1500 | 50 | 315 | 1450 |
| 400JYWQ1500-3.5-22 | 1500 | 3.5 | 22 | 740 |
| 400JYWQ1250-4-22 | 1250 | 4 | 22 | 740 |
| 400JYWQ1250-5-30 | 1250 | 5 | 30 | 740 |
| 400JYWQ1500-4-30 | 1500 | 4 | 30 | 740 |
| 400JYWQ1250-5-37 | 1250 | 5 | 37 | 740 |
| 400JYWQ1250-6-37 | 1250 | 6 | 37 | 740 |
| 400JYWQ1500-5-37 | 1500 | 5 | 37 | 740 |
| 400JYWQ1500-6-45 | 1500 | 6 | 45 | 740 |
| 400JYWQ1250-7-45 | 1250 | 7 | 45 | 740 |
| 400JYWQ1500-8-55 | 1500 | 8 | 55 | 740 |
| 400JYWQ1800-7-55 | 1800 | 7 | 55 | 740 |
| 400JYWQ1500-10-55 | 1500 | 10 | 55 | 740 |
| 400JYWQ2000-6-55 | 2000 | 60 | 55 | 740 |
| 400JYWQ1800-10-75 | 1800 | 10 | 75 | 740 |
| 400JYWQ2000-8-75 | 2000 | 8 | 75 | 740 |
| 400JYWQ1700-12-90 | 1700 | 12 | 90 | 740 |
| 400JYWQ2000-10-90 | 2000 | 10 | 90 | 740 |
| 400JYWQ1500-15-90 | 1500 | 15 | 90 | 740 |
| 400JYWQ1900-12-110 | 1900 | 12 | 110 | 740 |
| 400JYWQ2000-13-110 | 2000 | 13 | 110 | 740 |
| 400JYWQ1500-18-110 | 1500 | 18 | 110 | 740 |
| 400JYWQ2200-9-110 | 2200 | 9 | 110 | 740 |
| 400JYWQ2000-15-132 | 2000 | 15 | 132 | 740 |
| 400JYWQ1500-20-132 | 1500 | 20 | 132 | 740 |
| 400JYWQ1500-26-160 | 1500 | 26 | 160 | 980 |
| 400JYWQ1700-22-160 | 1700 | 22 | 160 | 980 |
| 400JYWQ2000-18-160 | 2000 | 18 | 160 | 980 |
| 400JYWQ1950-23-185 | 1950 | 23 | 185 | 980 |
| 400JYWQ2000-20-185 | 2000 | 20 | 185 | 980 |
| 400JYWQ2000-25-200 | 2000 | 25 | 200 | 980 |
| 400JYWQ1980-26-220 | 1980 | 26 | 220 | 980 |
| 400JYWQ2200-25-220 | 2200 | 25 | 220 | 980 |
| 400JYWQ1800-32-250 | 1800 | 32 | 250 | 980 |
| 400JYWQ2000-28-250 | 2000 | 28 | 250 | 980 |
| 450JYWQ2250-4-37 | 2250 | 4 | 37 | 740 |
| 450JYWQ2250-4.8-45 | 2250 | 4.8 | 45 | 740 |
| 450JYWQ2250-5.5-55 | 2250 | 5.5 | 55 | 740 |
| 450JYWQ2250-7-75 | 2250 | 7 | 75 | 740 |
| 450JYWQ2300-10-90 | 2300 | 10 | 90 | 740 |
| 450JYWQ2250-11-110 | 2250 | 11 | 110 | 740 |
| 450JYWQ2200-10-110 | 2200 | 10 | 110 | 740 |
| 450JYWQ2260-14-132 | 2260 | 14 | 132 | 740 |
| 450JYWQ2250-16-160 | 2250 | 16 | 160 | 740 |
| 450JYWQ2250-18-185 | 2250 | 18 | 185 | 740 |
| 450JYWQ2280-20-185 | 2280 | 20 | 185 | 740 |
| 450JYWQ2250-20-200 | 2250 | 20 | 200 | 740 |
| 450JYWQ2250-22-220 | 2250 | 22 | 220 | 740 |
| 450JYWQ2250-25-250 | 2250 | 25 | 250 | 740 |
| 450JYWQ2250-28-280 | 2250 | 28 | 280 | 740 |
| 450JYWQ2250-30-315 | 2250 | 30 | 315 | 740 |
| 500JYWQ3000-4-55 | 3000 | 4 | 55 | 740 |
| 500JYWQ3000-5-75 | 3000 | 5 | 75 | 740 |
| 500JYWQ3000-6-90 | 3000 | 6 | 90 | 740 |
| 500JYWQ3000-8-110 | 3000 | 8 | 110 | 740 |
| 500JYWQ2500-10-110 | 2500 | 10 | 110 | 740 |
| 500JYWQ2500-12-132 | 2500 | 12 | 132 | 740 |
| 500JYWQ2500-16-160 | 2500 | 16 | 160 | 740 |
| 500JYWQ2500-18-185 | 2500 | 18 | 185 | 740 |
| 500JYWQ2500-20-200 | 2500 | 20 | 200 | 740 |
| 500JYWQ2500-22-220 | 2500 | 22 | 220 | 740 |
| 500JYWQ2500-25-250 | 2500 | 25 | 250 | 740 |
| 500JYWQ2500-28-280 | 2500 | 28 | 280 | 740 |
| 500JYWQ2500-30-315 | 2500 | 30 | 315 | 740 |
| 500JYWQ2500-35-355 | 2500 | 35 | 355 | 740 |
| 600JYWQ4200-5.5-110 | 4200 | 5.5 | 110 | 740 |
| 600JYWQ3500-7-110 | 3500 | 7 | 110 | 740 |
| 600JYWQ3000-8-110 | 3000 | 8 | 110 | 740 |
| 600JYWQ4500-7-132 | 4500 | 7 | 132 | 740 |
| 600JYWQ3800-8-132 | 3800 | 8 | 132 | 740 |
| 600JYWQ3000-10-132 | 3000 | 10 | 132 | 740 |
| 600JYWQ5000-8-160 | 5000 | 8 | 160 | 740 |
| 600JYWQ4500-9-160 | 4500 | 9 | 160 | 740 |
| 600JYWQ3800-11-160 | 3800 | 11 | 160 | 740 |
| 600JYWQ3000-14-160 | 3000 | 14 | 160 | 740 |
| 600JYWQ5400-8-185 | 5400 | 8 | 185 | 740 |
| 600JYWQ4700-9-185 | 4700 | 9 | 185 | 740 |
| 600JYWQ3900-11-185 | 3900 | 11 | 185 | 740 |
| 600JYWQ3600-12-185 | 3600 | 12 | 185 | 740 |
| 600JYWQ4000-12-200 | 4000 | 12 | 200 | 740 |
| 600JYWQ5600-9-200 | 5600 | 9 | 200 | 740 |
| 600JYWQ4800-10-200 | 4800 | 10 | 200 | 740 |
| 600JYWQ3000-17-200 | 3000 | 17 | 200 | 740 |
| 800JYWQ8000-3-132 | 8000 | 3 | 132 | 740 |
| 800JYWQ8000-4-160 | 8000 | 4 | 160 | 740 |
| 800JYWQ8000-5-185 | 8000 | 5 | 185 | 740 |
| 800JYWQ10000-4-200 | 10000 | 4 | 200 | 740 |
| 800JYWQ10000-5-220 | 10000 | 5 | 220 | 740 |
| 800JYWQ9000-6-250 | 9000 | 6 | 250 | 740 |
| 800JYWQ8000-7-250 | 8000 | 7 | 250 | 740 |
| 800JYWQ7200-8-280 | 7200 | 8 | 280 | 740 |
| 800JYWQ9000-7-280 | 9000 | 7 | 280 | 740 |
| 800JYWQ9000-8-315 | 9000 | 8 | 315 | 740 |
| 800JYWQ6800-10-315 | 6800 | 10 | 315 | 740 |
| 800JYWQ8000-11-355 | 8000 | 11 | 355 | 740 |
| 800JYWQ9000-10-355 | 9000 | 10 | 355 | 740 |
Related products
InquiryPlease Feel free to give your inquiry in the form below.We will reply you in 24 hours.
Inquiry form · contact details pending
