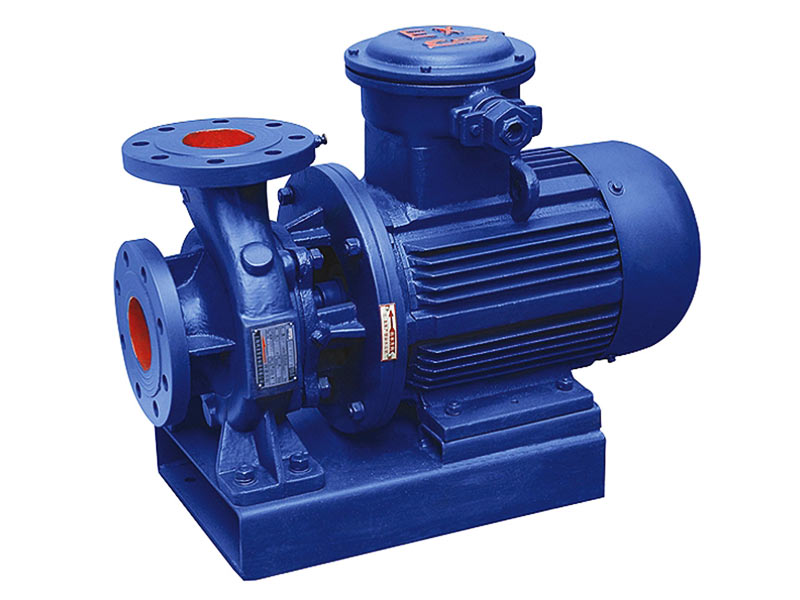

ISWB Oil Pump (Explosion-proof Motor)

1. Vertical



1. Y/Y2 Series Motor:the driving part of pump, with a close- coupled type.
2. Pump Shaft:coaxial with motor and high concentricity to enable pump operating without noise and vibration.
3. Water Deflector:to avoid water entering motor due to leakage at seal.
4. Pump Cover:elaborately designed of sharing the same end cover with motor, shortened axial dimensions and simple structure.
5. Mechanical Seal:made of stainless steel, tungsten carbide, fluorine rubber and etc, for outstanding sealing, durable service life and leak-tightness.
6. Pressure Plug:to mount pressure gauge to monitor the normal operation of pump.
7. Pump Body:to lower the velocity of flow, making velocity energy into pressure energy
8. Drain Plug:fully let out the liquid inside in case that pump needs servicing or will be left unused for a long time.
9. Air Release Valve:to release the air inside to ensure the normal start of pump.
10. Impeller:to play a leading role with its vane forcing liquid rotated and splashed around driven by centrifugal force.

2. Horizontal


1. Pump Body:to lower the velocity of flow, making velocity energy into pressure energy.
2. Impeller:to play a leading role with its vane forcing liquid rotated and splashed around driven by centrifugal force.
3. Pressure Plug:to mount pressure gauge to monitor the normal operation of pump.
4. Air Release Valve:to release the air inside to ensure the normal start of pump.
5. Y/Y2 Series Motor:the driving part of pump, with a close coupled type.
6. Base:pump’s foundation, to ensure the stable of installation.
7. Water Deflector:to avoid water entering motor due to leakage at seal.
8. Pump Cover:elaborately designed of sharing the same end cover with motor, shortened axial dimensions and simple structure.
9. Mechanical Seal:made of stainless steel, tungsten carbide, fluorine rubber and etc, for outstanding sealing, durable service life and leak-tightness.
10. Pump Shaft:coaxial with motor and high concentricity to enable pump operating without noise and vibration.
11. Drain Plug:fully let out the liquid inside in case that pump needs servicing or will be left unused for a long time.

1. Application Scope
Deliver fresh water or the liquid which its chemical character is similar to fresh water. Industry and city water supply and drainage.

2. Using Instruction
Before start:
1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position.
2. Opening the inlet valve and the vent valve, letting the water fill into the pump's chamber, then closing the vent valve.
3. Clicking the switch of motor, and confirming whether the turning is right or not.
Running:
1. Fully opening the inlet valves, and closing the valves of the outlet pipe.
2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal.
3. Watching whether there exist abnormities or not, if yes, should the pump be stopped and inspected before re-running.
Stop:
1. After turning off the outlet valves one by one, shutting off the power.
2. Shutting off the inlet valves.
3. If the ambient temperature is below 0, some warm keeping measures should be adopted.

1. Performance curve


2. Specifications

Model	Flow(m3/h)	Head(mpa)	Power(kw)	Speed (rpm)	Caliber (mm)
25-125	4	20	0.75	2900	25
25-160	4	32	1.5	2900	25
32-100	4.5	12.5	0.55	2900	32
32-200	4.5	50	3	2900	32
40-160A	5.9	28	1.5	2900	40
40-200	6.3	50	4	2900	40
40-250	6.3	80	7.5	2900	40
40-250(I)	12.5	80	11	2900	40
50-125A	11	16	1.1	2900	50
50-200	12.5	50	5.5	2900	50
50-250	12.5	80	11	2900	50
50-315(I)B	22.5	101	18.5	2900	50
65-125A	22.3	16	2.2	2900	65
65-200B	21.8	38	4	2900	65
65-250	25	80	15	2900	65
65-315(I)	50	125	37	2900	65
80-160	50	32	7.5	2900	80
80-250	50	80	22	2900	80
80-350	50	150	55	2900	80
80-315(I)	100	125	75	2900	80
100-125A	80	16	7.5	2900	100
100-200A	93.5	44	18.5	2900	100
100-250	100	80	37	2900	100
100-350	100	150	90	2900	100
125-160	160	32	22	2900	125
125-200	160	50	37	2900	125
125-250	160	90	55	2900	125
125-315A	150	110	75	2900	125
150-160B	140	24	15	2900	150
150-250	200	80	75	2900	150
150-315A	187	110	90	2900	150
150-350	160	150	110	2900	150
more specifications pls feel free to contact us.
