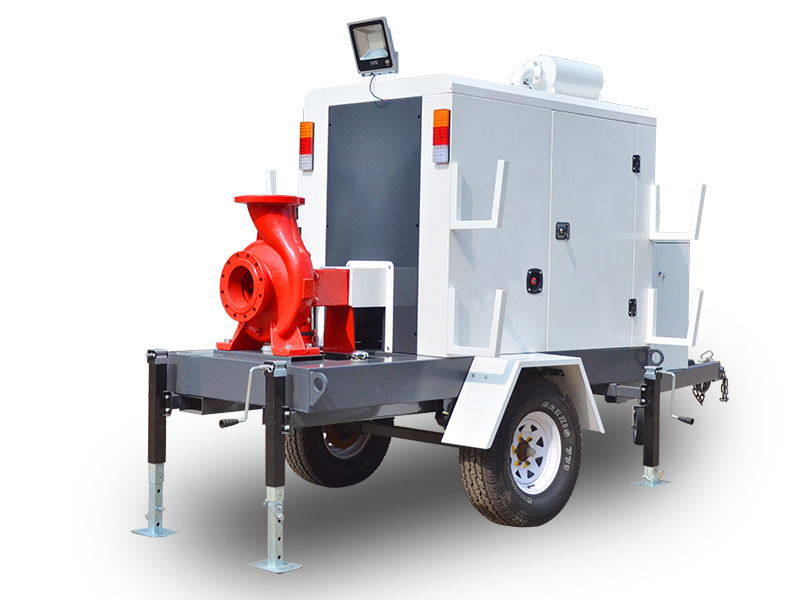

Fire Emergency Mobile Pump Truck
Self-priming height:≤9m
Head:5～200 bar
Flow:300～3500m³/h
Material:Cast Iron, Stainless Steel
If you want to get more product information please contact us!

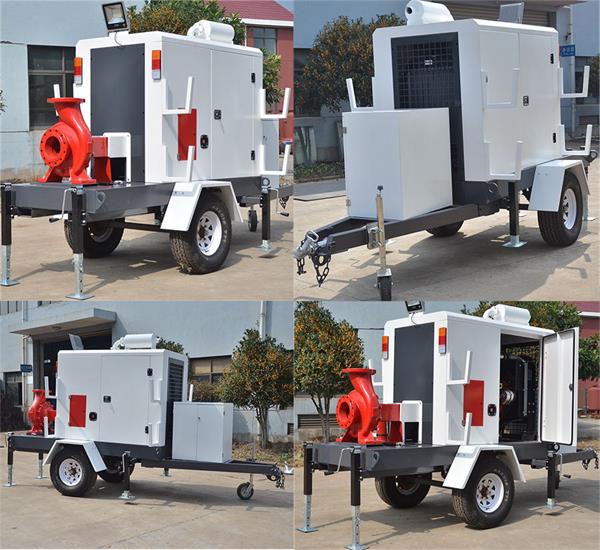

The complete set of XBC emergency mobile pump truck set includes: pump, diesel engine, fuel tank, water tank, battery, control cabinet, two-wheel support, trailer and brake and other components. This type of pump truck is a trailer type, driven by a diesel engine in various forms, with a two-wheeled or four-wheeled trailer chassis. It has the characteristics of small size, strong reliability, strong mobility, and low maintenance costs.
This type of pump truck is mainly suitable for urban areas, tunnel rescue and various complex working conditions. The effects of stability and shock absorption are also two of its major points. It is mainly used for flood control and drought relief, emergency drainage, etc.
2. Quick maintenance can be achieved without dismantling the pipeline system. The water pump is designed with a viewing window and a water outlet. When large particles, long and coarse fibers enter the pump body, the observation port can be easily opened and taken out; By opening the viewing window and the water outlet at the same time, the sewage or sundries in the pump can be completely discharged, so as to facilitate non-destructive storage and light transportation, ensure that it can be used at any time, and be on standby 24 hours a day.
3. The pump body is cast with high-strength ductile iron, using electrostatic spraying, high-quality, high-strength paint protection
4. Unique open impeller design, the pump runs smoothly and the pulse is small
5. The large design of the impeller chamber of the pump allows instant influx of debris and cellulose without causing blockage
This type of pump truck is mainly suitable for urban areas, tunnel rescue and various complex working conditions. The effects of stability and shock absorption are also two of its major points. It is mainly used for flood control and drought relief, emergency drainage, etc.
Features
1. Compact structure and small volume2. Quick maintenance can be achieved without dismantling the pipeline system. The water pump is designed with a viewing window and a water outlet. When large particles, long and coarse fibers enter the pump body, the observation port can be easily opened and taken out; By opening the viewing window and the water outlet at the same time, the sewage or sundries in the pump can be completely discharged, so as to facilitate non-destructive storage and light transportation, ensure that it can be used at any time, and be on standby 24 hours a day.
3. The pump body is cast with high-strength ductile iron, using electrostatic spraying, high-quality, high-strength paint protection
4. Unique open impeller design, the pump runs smoothly and the pulse is small
5. The large design of the impeller chamber of the pump allows instant influx of debris and cellulose without causing blockage
Parameter
| Name | Trailer mobile drainage pump truck | Brand | |
| Type | weather-proof and trailer type | Model | BDSP-10 |
| Max Capacity | 500m³/h | Max Suction Head | 5m |
| Inlet/Outlet | DN200 | Move mode | Two-wheel high-speed trailer with electronic braking system |
| Driving speed | Speed limit 80km/h | Engine Power | 70KW |
| Engine Speed | 1500r/min | Fuel Tank Capacity | 200L |
| Suction Pipe | 6m | Discarge Pipe | 20m |
| Rainproof Enclosure | 2mm Galvanized steel plate with polyester powder coated | ||
1. Compact structure and small volume
2. Quick maintenance can be achieved without dismantling the pipeline system. The water pump is designed with a viewing window and a water outlet. When large particles, long and coarse fibers enter the pump body, the observation port can be easily opened and taken out; By opening the viewing window and the water outlet at the same time, the sewage or sundries in the pump can be completely discharged, so as to facilitate non-destructive storage and light transportation, ensure that it can be used at any time, and be on standby 24 hours a day.
3. The pump body is cast with high-strength ductile iron, using electrostatic spraying, high-quality, high-strength paint protection
4. Unique open impeller design, the pump runs smoothly and the pulse is small
5. The large design of the impeller chamber of the pump allows instant influx of debris and cellulose without causing blockage
2. Quick maintenance can be achieved without dismantling the pipeline system. The water pump is designed with a viewing window and a water outlet. When large particles, long and coarse fibers enter the pump body, the observation port can be easily opened and taken out; By opening the viewing window and the water outlet at the same time, the sewage or sundries in the pump can be completely discharged, so as to facilitate non-destructive storage and light transportation, ensure that it can be used at any time, and be on standby 24 hours a day.
3. The pump body is cast with high-strength ductile iron, using electrostatic spraying, high-quality, high-strength paint protection
4. Unique open impeller design, the pump runs smoothly and the pulse is small
5. The large design of the impeller chamber of the pump allows instant influx of debris and cellulose without causing blockage
1. Ambient temperature≤50℃, medium temperature≤100℃, suitable for outdoor use.
2. The medium PH value of cast iron material is 6~9, and the material of 304 is 2~14.
3. The weight of the medium does not exceed 1050kg/m3.
4. The length of the suction pipe is less than or equal to 16 meters, and the height of self-priming is less than or equal to 9 meters.
5. The flow rate is 300-3500 cubic meters per hour, the lift is 5-200 meters, and the power is 30-1000kW.
Scope of Applications
1. There are no fixed pumping stations and areas without power supply;
2. Assault flood control and drainage;
3. drought relief;
4. Agricultural irrigation, aquaculture;
5. Various occasions for temporary pumping;
6. Cofferdam pumping;
7. Industrial and municipal drainage.
| Name | Trailer mobile drainage pump truck | Brand | |
| Type | weather-proof and trailer type | Model | BDSP-10 |
| Max Capacity | 500m³/h | Max Suction Head | 5m |
| Inlet/Outlet | DN200 | Move mode | Two-wheel high-speed trailer with electronic braking system |
| Driving speed | Speed limit 80km/h | Engine Power | 70KW |
| Engine Speed | 1500r/min | Fuel Tank Capacity | 200L |
| Suction Pipe | 6m | Discarge Pipe | 20m |
| Rainproof Enclosure | 2mm Galvanized steel plate with polyester powder coated | ||
