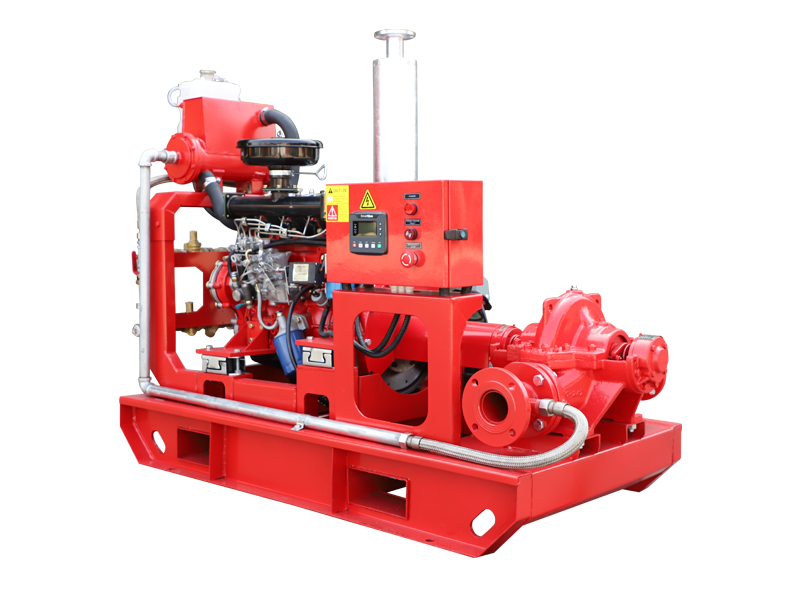

XBC-S Diesel Engine Split Case Fire Pump
Flow:1500-6000 gpm / 63-380l/s
Head:5-12 bar / 72.5-174 psi
Caliber:150-350mm
Power:220-710kW
Speed:1500r/min
Working Pressure:1.6MPa
If you want to get more product information please contact us!
FEATURES
1. Split case design permits easy dis-assembly, that is, inspection is simplified, it is not necessary to disturb pump alignment and suction & discharge piping when parts replacement is necessary.
2. Double suction with advanced design of suction performance ensures high suction lift even with large capacity.
3. Pump operation with low noise and stability, in use ensure comfortable environment. Variable combination of materials permit wide application.
4. Drive shaft end of the pump optionally on the left or right. Shaft seal uncooled soft- packed stuffing box or uncooled single acting unbalanced mechanical seal, etc.
APPLICATION RANGE
Capacity: Approx 75- 22000 m3 /hr.
Total head: Approx 10-220 m.
Liquid: Fresh water/ Industries/River water/Sea water/Brine/Paper stock Hydro-carbon etc.
1. Application Scope
1-- Applicable for the XBC series diesel engine fire-fighting pump control made in this Co., and also for the diesel engine fire-fighting pump and diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.
2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of thefire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
1-- Applicable for the XBC series diesel engine fire-fighting pump control made in this Co., and also for the diesel engine fire-fighting pump and diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.
2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of thefire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| XBC2/5-IS | 2600 | 5 | 0.2 | 3 | 65/65 |
| XBC8/5-IS | 2000 | 5 | 0.8 | 7.5 | 50/50 |
| XBC6/10-IS | 2000 | 10 | 0.6 | 22 | 100/100 |
| XBC3/15-IS | 2600 | 15 | 0.3 | 11 | 80/80 |
| XBC10/15-TSWA | 1500 | 15 | 1 | 37 | 100/100 |
| XBC5/20-IS | 2000 | 20 | 0.5 | 22 | 125/125 |
| XBC8/20-DA | 1500 | 20 | 0.8 | 30 | 100/100 |
| XBC2.0/25(30)-D | 1500 | 25/30 | 0.2 | 11 | 125/125 |
| XBC9.0/25(30)-D | 1500 | 25/30 | 0.9 | 55 | 125/125 |
| XBC14.0/25(30)-D | 1500 | 25/30 | 1.4 | 75 | 125/125 |
| XBC8/35(40/45)-DA | 1500 | 35/40/45 | 0.8 | 75 | 150/150 |
| XBC21.0/35(40/45)-DA | 1500 | 35/40/45 | 2.1 | 160 | 150/150 |
| XBC2/50(55/60)-W | 1500 | 50/55/60 | 0.2 | 18.5 | 150/150 |
| XBC15/50(55/60)-D | 1500 | 50/55/60 | 1.5 | 132 | 150/150 |
| XBC5/80(85/90)-W | 1500 | 80/85/90 | 0.5 | 75 | 200/200 |
| XBC8/80(85/90)-W | 1500 | 80/85/90 | 0.8 | 90 | 200/200 |
| XBC1.6/80(85/90)-W | 1500 | 80/85/90 | 1.6 | 200 | 200/200 |
| XBC2/100(110/120)-W | 1500 | 100/110/120 | 0.2 | 45 | 250/250 |
| XBC6/100(110/120)-W | 1500 | 100/110/120 | 0.6 | 110 | 200/200 |
| XBC13/100(110/120)-W | 1500 | 100/110/120 | 1.3 | 220 | 250/250 |
| XBC5(6)/100(110/120)-S | 1500 | 100/110/120 | 0.5 | 132 | 250/150 |
| XBC6(7/8)/180(190/200)-S | 1500 | 180/190/200 | 0.6 | 315 | 250/150 |
| XBC5/250-S | 1500 | 250 | 0.5 | 220 | 250/200 |
| XBC7/300-S | 1500 | 300 | 0.7 | 315 | 300/250 |
| XBC10/300-S | 1500 | 300 | 1 | 630 | 350/250 |
| XBC7/350-S | 1500 | 350 | 0.7 | 355 | 300/250 |
| XBC12/350-S | 1500 | 350 | 1.2 | 710 | 350/250 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | |||||
