Fire Pump Packages

Fire Pump Packages(Electric pump+Diesel pump+Jockey pump)

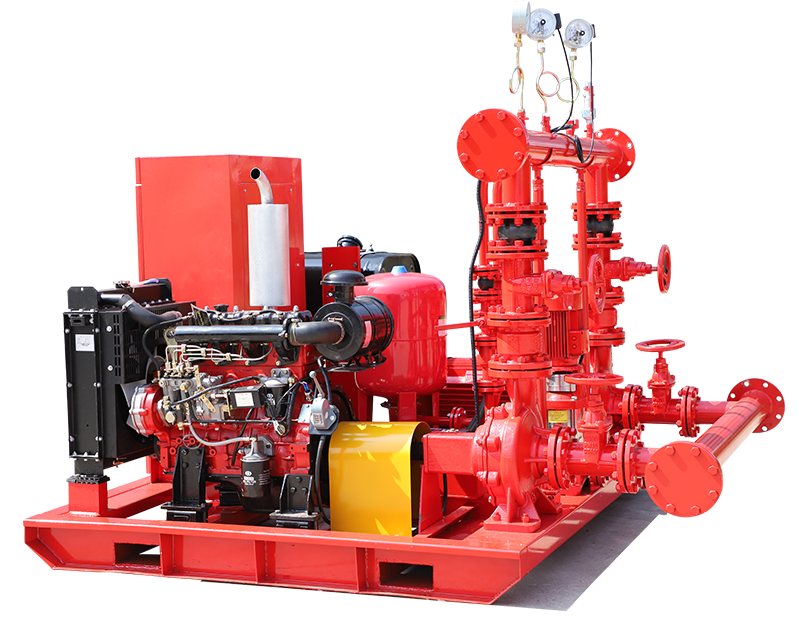

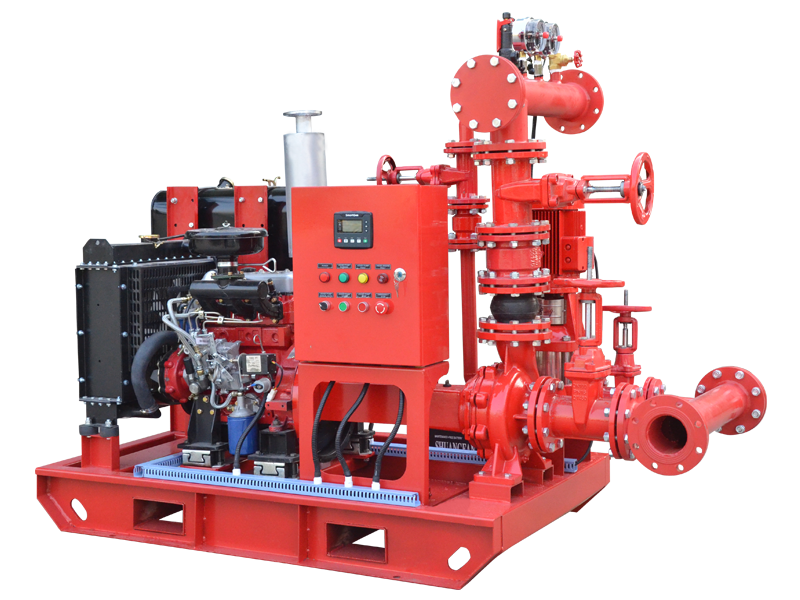

Fire pump packagecomprises a combination of electric motor driven pump, diesel engine driven pump and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

Types of pumpsused for fire service include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.

Specifications

Fire pump system is made of Electric pump +Diesel pump +Jockey pump
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

100GPM @4BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD4/5-50L(50-200)	100	4	5.5	cast iron
Diesel engine	XBC4/5-IS	100	4	5.5	cast iron
Jockey	CDL2-70	10	5	0.75	SS304
100GPM @6BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD6/5-65L(65-250B)	100	6	7.5	cast iron
Diesel engine	XBC6/5-IS	100	6	7.5	cast iron
Jockey	CDL2-100	10	7	1.1	SS304
200GPM @6BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD6/10-65L(65-250)	200	6	15	cast iron
Diesel engine	XBC4/5-IS	200	6	22	cast iron
Jockey	CDL4-90	20	7	2.2	SS304
500GPM @5BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD5/30-100L(100-200)	500	5	22	cast iron
Diesel engine	XBC5/30-IS	500	5	30	cast iron
Jockey	CDL12-60	50	6	4	SS304
500GPM @8BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD8/30-100L(100-250)	500	8	37	cast iron
Diesel engine	XBC8/30-D	500	8	45	cast iron
Jockey	CDL12-90	50	9	5.5	SS304
500GPM @10BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD10/30-100L(100-315A)	500	10	55	cast iron
Diesel engine	XBC10/30-D	500	10	55	cast iron
Jockey	CDL12-110	50	11	7.5	SS304
750GPM @9BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD9/50-125L(125-250)	750	9	55	cast iron
Diesel engine	XBC9/50-D	750	9	90	cast iron
Jockey	CDL16-90	70	10	11	SS304
750GPM @10BAR
Pump	Model	Capacity(GPM)	Head(BAR)	Power(KW)	Material
Electric	XBD10/50-150L(150-315A)	750	10	90	cast iron
Diesel engine	XBC10/50-D	750	10	90	cast iron
Jockey	CDL16-100	70	11	11	SS304
more specification please contact us
