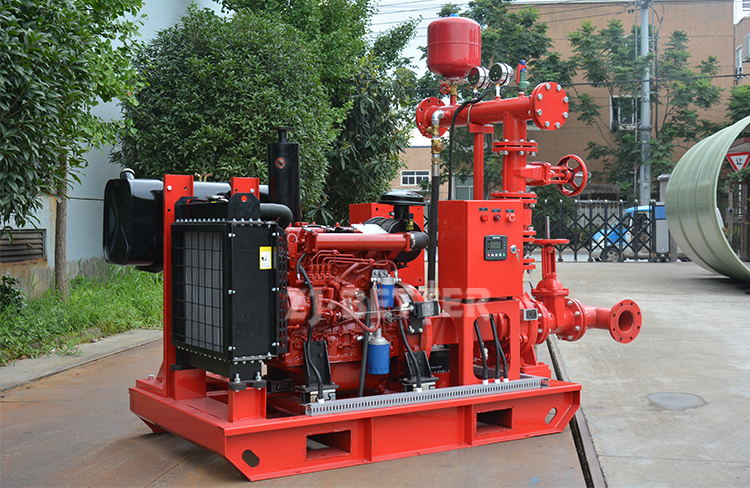

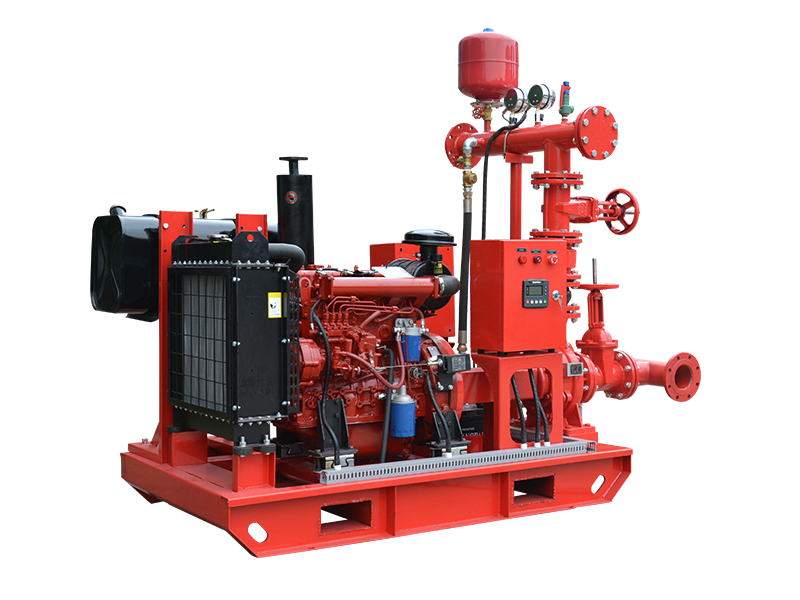

Diesel Fire Pump Set
Flow:30-9000gpm
Head:3-20bar
Caliber:25-800mm
Power:Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed:740-2900r/min
Material:HT200, SS304, Bronze
If you want to get more product information please contact us!

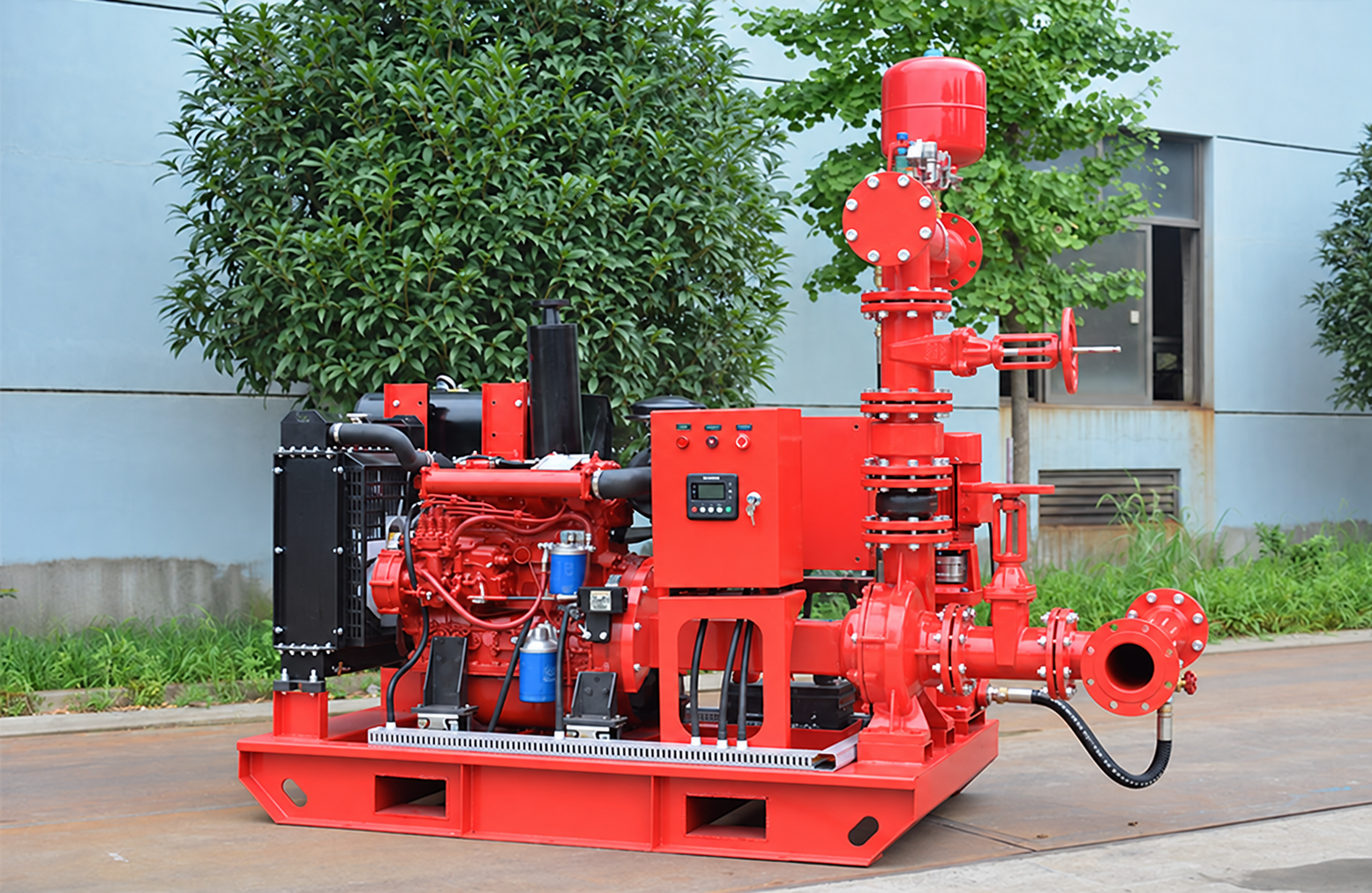

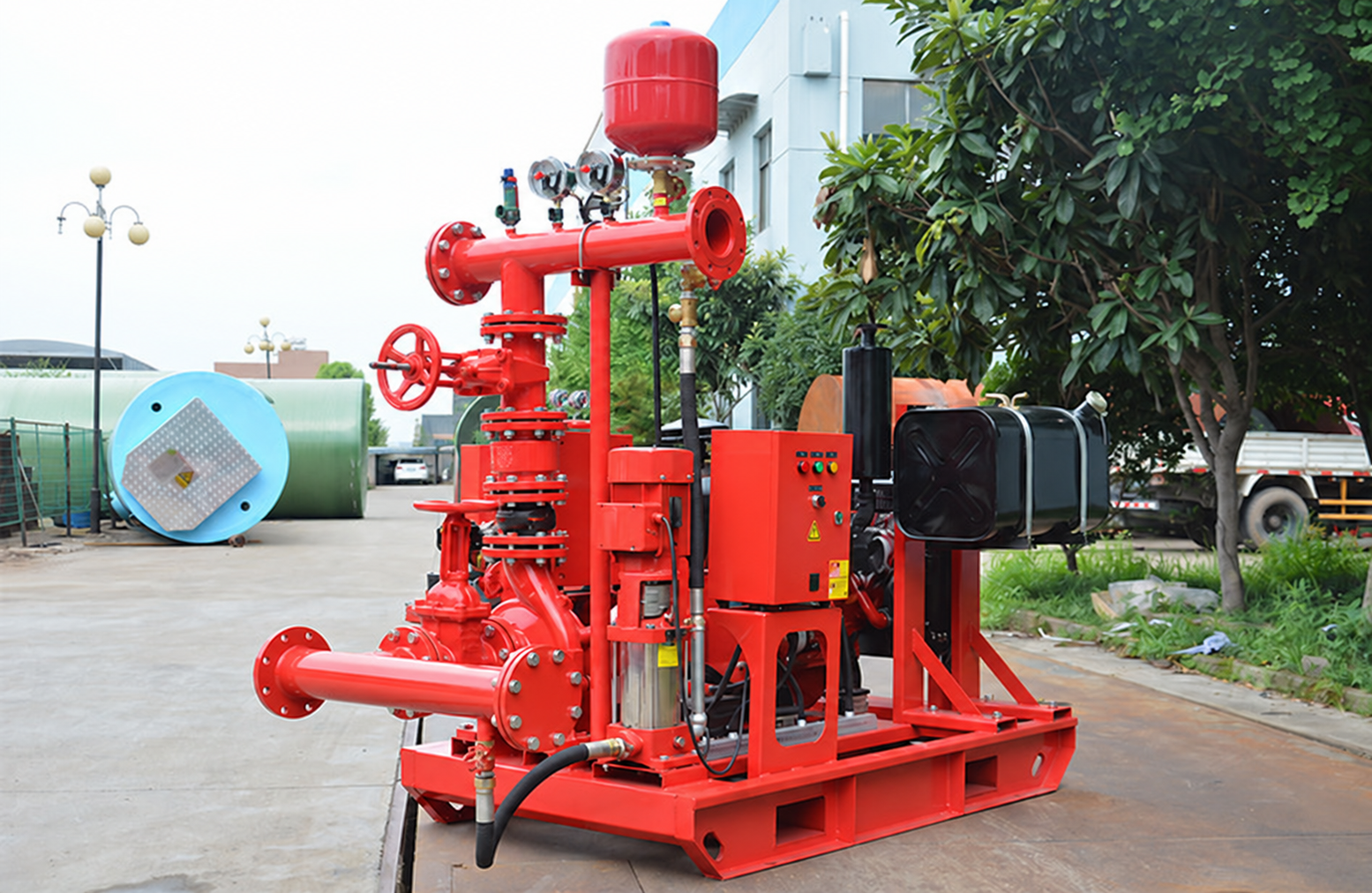

DJ fire pump set (Diesel pump+Jockey pump)
Bare pump providedinclude: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines. .
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
3. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.
| Model | Pump | Diesel Engine | Jockey Pump | |||||||
| Flow | Head | Pressure | Model | Power | Diesel Engine | Model | Head | Power | ||
| M3/h | GPM | bar | Pis | kW | bar | kw | ||||
| DJ25/3 | 5.6 | 25 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ25/4 | 5.6 | 25 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ25/5 | 5.6 | 25 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ25/6 | 5.6 | 25 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ25/7 | 5.6 | 25 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ25/8 | 5.6 | 25 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ25/9 | 5.6 | 25 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ25/10 | 5.6 | 25 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ25/11 | 5.6 | 25 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ25/12 | 5.6 | 25 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ30/3 | 6.9 | 30 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ30/4 | 6.9 | 30 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ30/5 | 6.9 | 30 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ30/6 | 6.9 | 30 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ30/7 | 6.9 | 30 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ30/8 | 6.9 | 30 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ30/9 | 6.9 | 30 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ30/10 | 6.9 | 30 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ30/11 | 6.9 | 30 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ30/12 | 6.9 | 30 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ100/10 | 22.7 | 100 | 10 | 145 | D25-30x4 | 20 | 295F | CDL2-14 | 10.5 | 1.5 |
| DJ100/11 | 22.7 | 100 | 11 | 160 | D25-30x4 | 20 | 295F | CDL2-15 | 11.2 | 1.5 |
| DJ100/12 | 22.7 | 100 | 12 | 174 | D25-30x4 | 20 | 295F | CDL2-17 | 12.7 | 2.2 |
